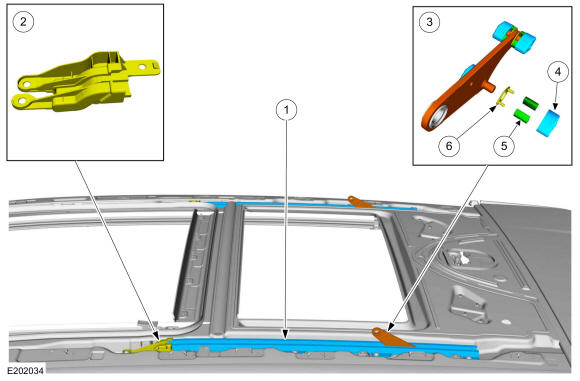

Idler Track Assembly
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Idler track assembly |
| 2 |
Idler track front cam (PIA to idler track assembly) |
| 3 |
Rear lifter arm (PIA to idler track assembly) |
| 4 |
Slider (PIA to rear lifter arm) |
| 5 |
Bushing (PIA to rear lifter arm) |
| 6 |
Rear slider shoe (PIA to rear lifter arm) |
