Windshield Wiper Pivot Arm: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hood removed in this procedure for clarity.

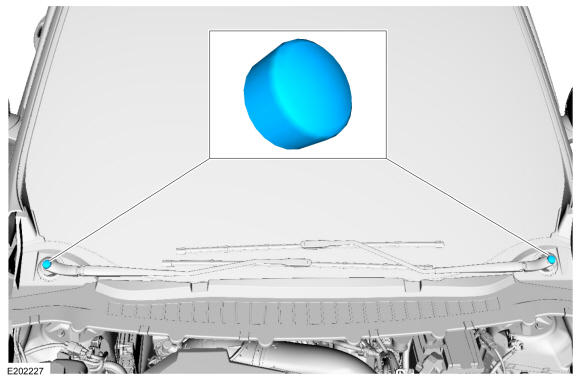

- Remove the wiper pivot arm nut cover(s).
 Courtesy of FORD MOTOR COMPANY
|

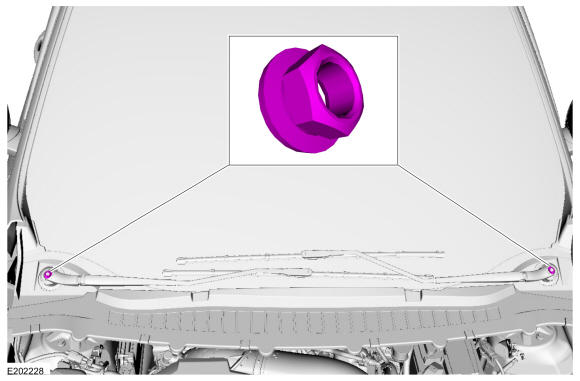

- Remove the wiper pivot arm nut(s).
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:
Failure to use a two leg puller may result in broken wiper motor bracket legs.

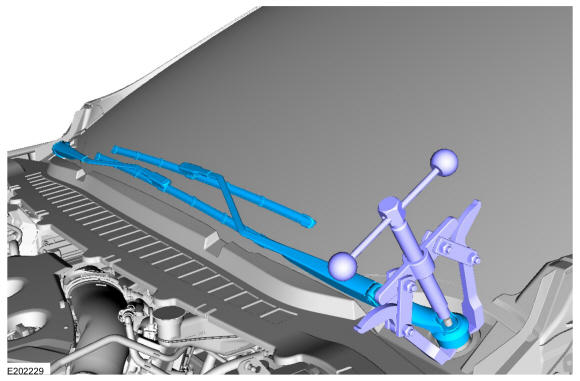

Remove the wiper pivot arm(s). Use the General Equipment: Two Leg Puller
 Courtesy of FORD MOTOR COMPANY
|
