Windshield Washer Reservoir: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Hood shown removed for clarity.

Siphon the windshield washer fluid out. Use the General Equipment: Fluid Suction Gun. Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY

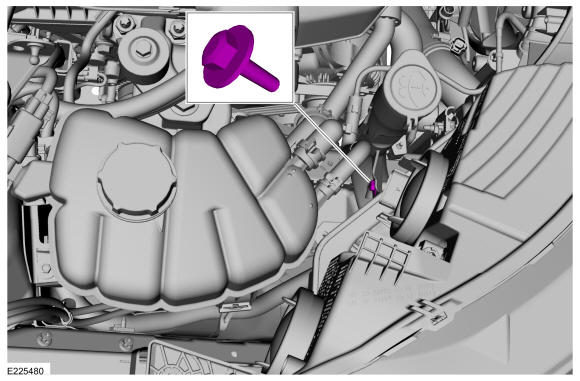

Remove the filler neck bolt.

Courtesy of FORD MOTOR COMPANY
Remove the front bumper cover. Refer to: Front Bumper Cover .
NOTE: Fender splash shield shown removed for clarity.

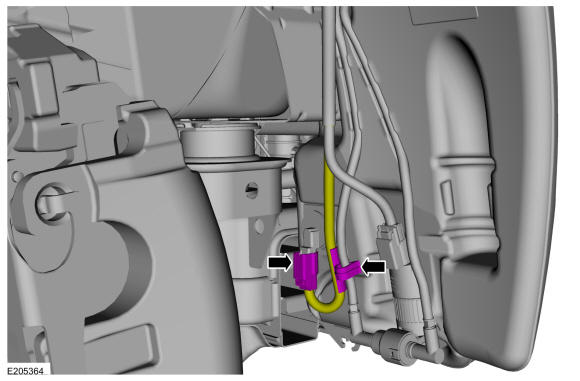

Detach the wire harness retainer and disconnect the level sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Fender splash shield shown removed for clarity.

NOTE: Be prepared to collect escaping fluid.

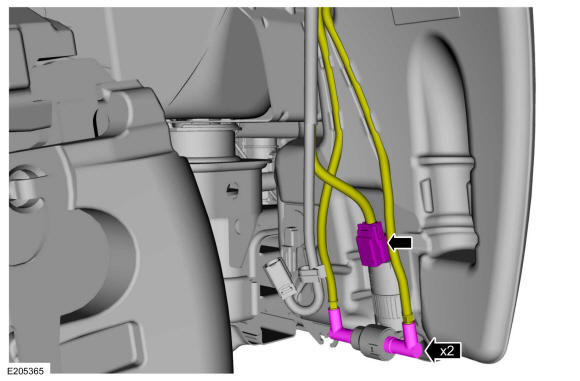

Disconnect the washer pump electrical connector and detach the washer hoses. Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY
NOTE: Fender splash shield shown removed for clarity.

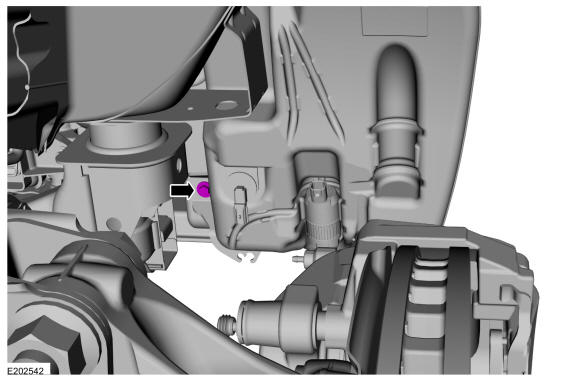

Remove the lower reservoir bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Fender splash shield shown removed for clarity.

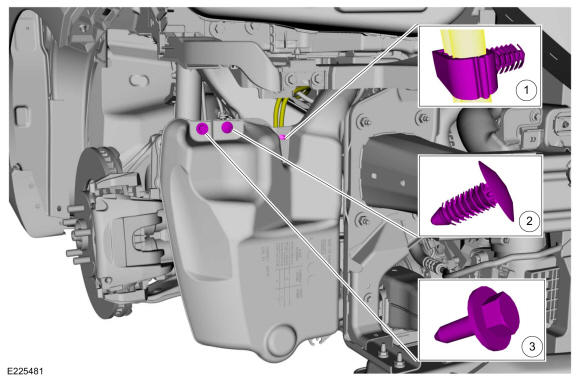

1. Detach the washer hose retainer and position aside.
2. Remove the pin-type retainer.
3. Remove the upper reservoir bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: Fender splash shield shown removed for clarity.

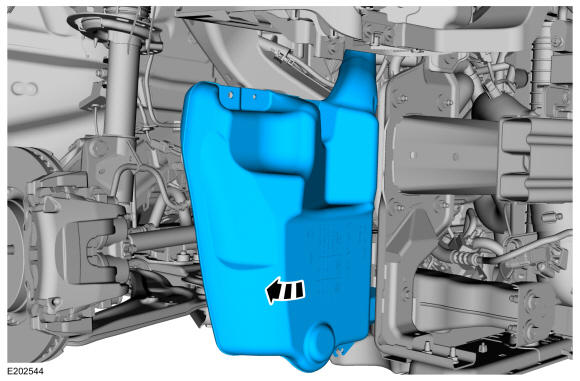

Remove the washer reservoir.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

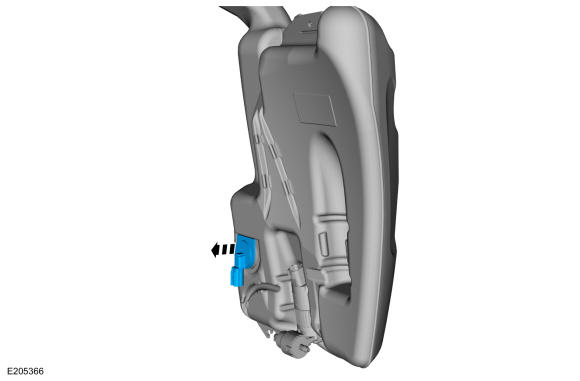

Remove the fluid level sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

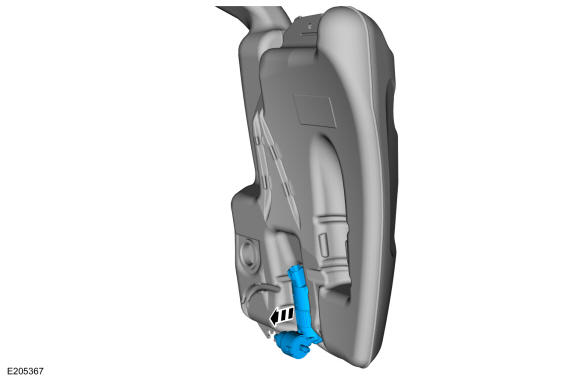

Remove the washer pump.

Courtesy of FORD MOTOR COMPANY
