Windshield Washer Pump: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hood removed in this procedure for clarity.

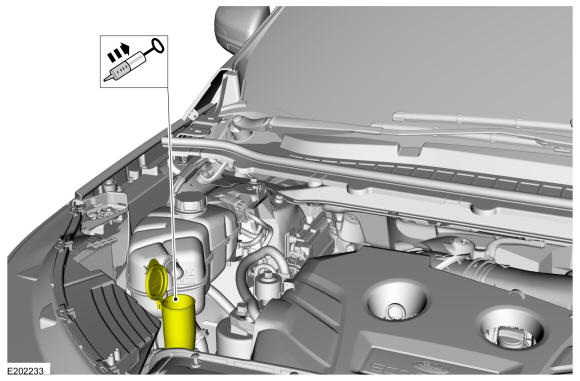

- Siphon the windshield washer fluid out. Use the General Equipment: Fluid Suction Gun. Use the General Equipment: Fluid Container
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .

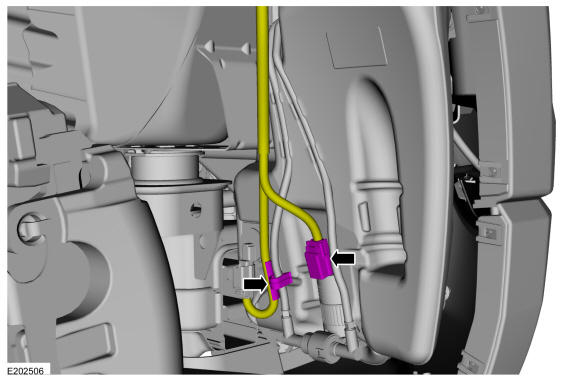

- Detach the wire harness retainer and disconnect the washer pump electrical connector.
-
NOTE: Be prepared to collect escaping fluid.

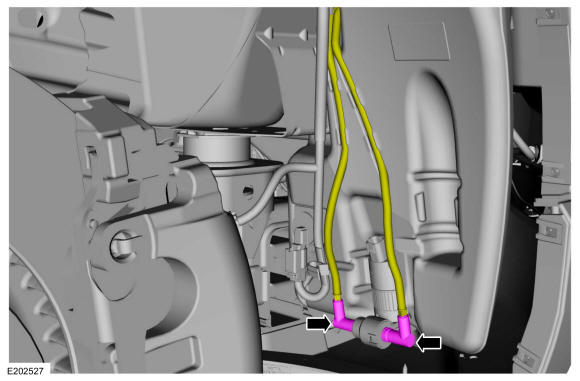

Detach the washer hoses. Use the General Equipment: Fluid Container
-
NOTE: Be prepared to collect escaping fluid.

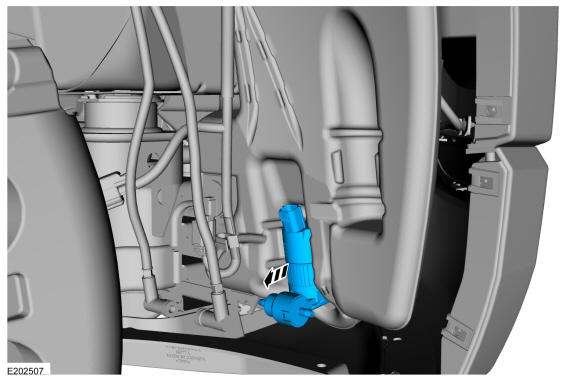

Remove the washer pump. Use the General Equipment: Fluid Container
