Rear Window Wiper Pivot Arm: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

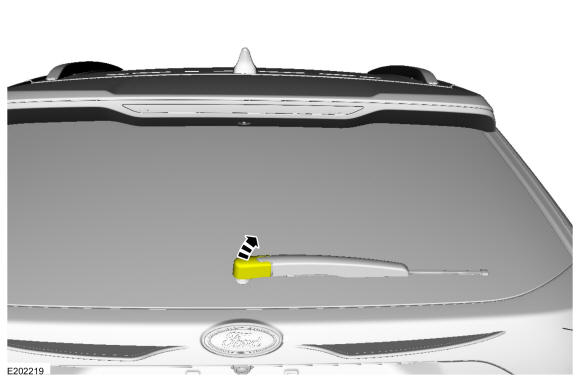

  1. Open the wiper pivot arm nut cover.
    GFD283609Courtesy of FORD MOTOR COMPANY

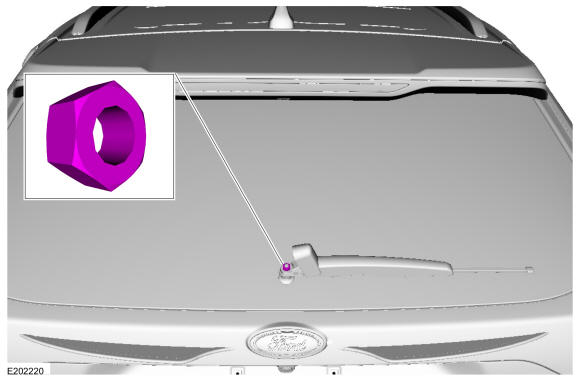

  2. Remove the wiper pivot arm nut.
    GFD283610Courtesy of FORD MOTOR COMPANY

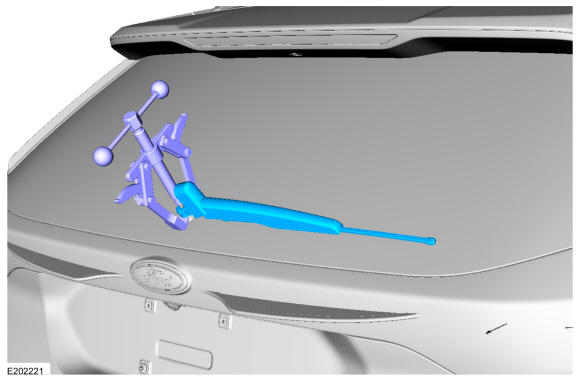

  3. Remove the wiper pivot arm. Use the General Equipment: Two Leg Puller
GFD283611Courtesy of FORD MOTOR COMPANY
