Rear Window Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

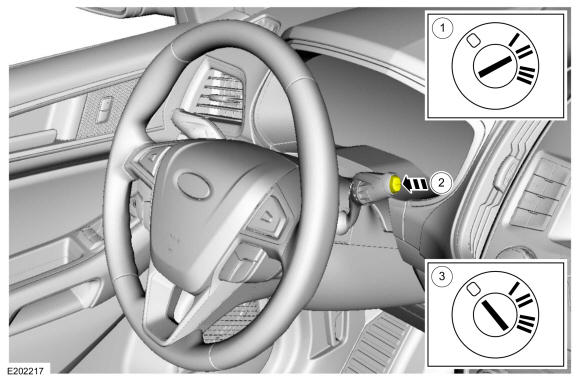

Verify the rear window wiper motor is in the PARK position.
1. Set the ignition switch to the ON position.
2. Push the rear wiper switch to cycle the rear wiper motor.
3. Set the ignition switch to the OFF position.
Courtesy of FORD MOTOR COMPANY

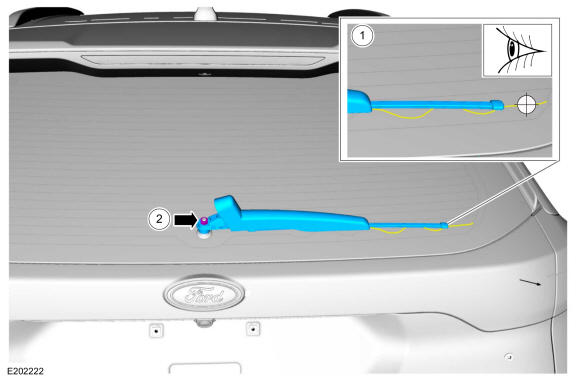

Install the wiper pivot arm.
1. Align the wiper blade on the wavy defroster grid line.
2. Install the wiper pivot arm nut.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

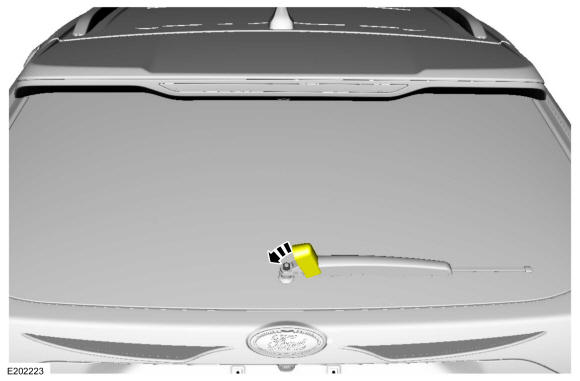

Close the wiper pivot arm nut cover.

Courtesy of FORD MOTOR COMPANY
