Rain Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

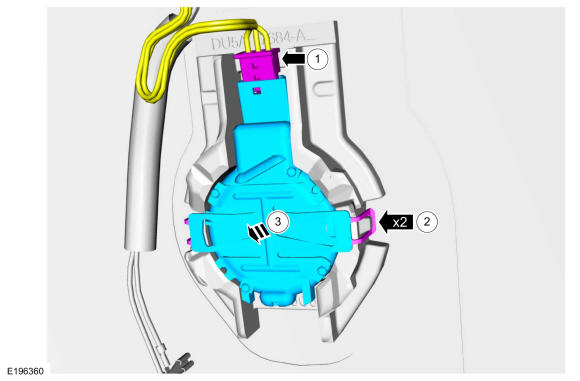

  1. Remove the interior rear view mirror. Refer to: Interior Rear View Mirror .
  2. Remove the rain sensor.

    1. Disconnect the electrical connector and position aside.
    2. On both sides. Release the retainers.
    3. Remove the rain sensor.

GFD283603Courtesy of FORD MOTOR COMPANY
