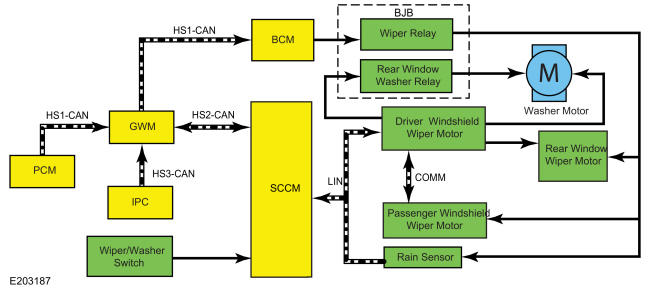

System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

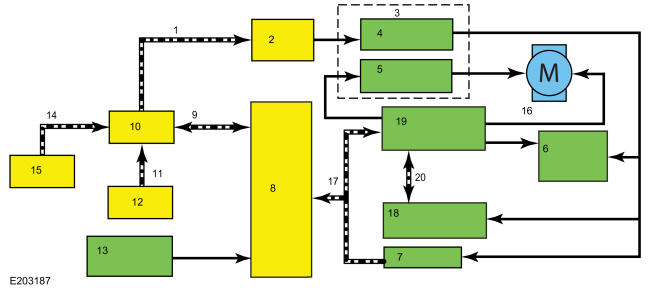

| Item | Description |
|---|---|
| 1 | HS1-CAN |
| 2 | BCM |
| 3 | BJB |
| 4 | Wiper Relay |
| 5 | Rear Window Washer Relay |
| 6 | Rear Window Wiper Motor |
| 7 | Rain Sensor |
| 8 | SCCM |
| 9 | HS2-CAN |
| 10 | GWM |
| 11 | HS3-CAN |
| 12 | IPC |
| 13 | Wiper/Washer Switch |
| 14 | HS1-CAN |
| 15 | PCM |
| 16 | Washer Motor |
| 17 | LIN |
| 18 | Passenger Windshield Wiper Motor |
| 19 | Driver Windshield Wiper Motor |
| 20 | COMM |
