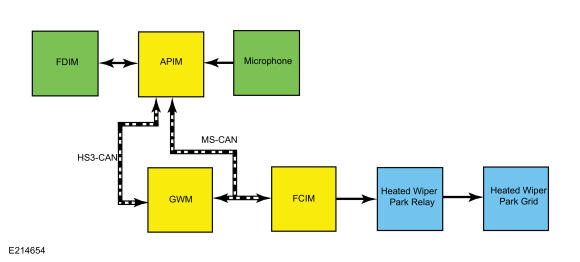

System Diagram - Heated Wiper Park
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

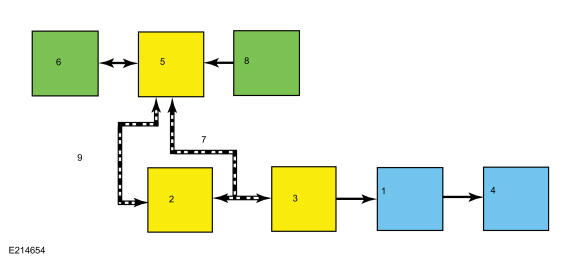

| Item |
Description |
| 1 |
Heated Wiper Park Relay |
| 2 |
GWM |
| 3 |
FCIM |
| 4 |
Heated Wiper Park Grid |
| 5 |
APIM |
| 6 |
FDIM |
| 7 |
MS-CAN |
| 8 |
Microphone |
| 9 |
HS3-CAN |
