Rear Door Latch: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
NOTE: This step is only necessary when installing a new component.

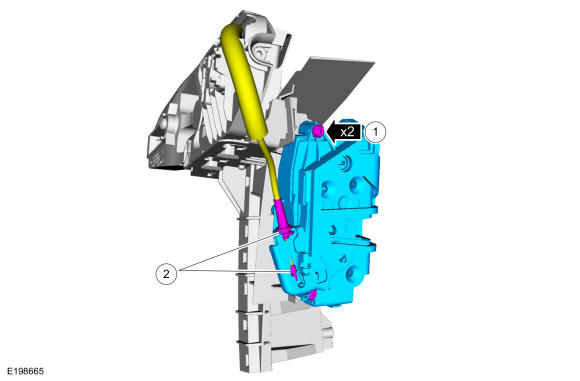

Install the rear door latch.
1. Install the rear door latch and the screws.
2. Attach the cable to the rear door latch.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: This step must be done correctly or the exterior door handle will not engage the lever on installation.

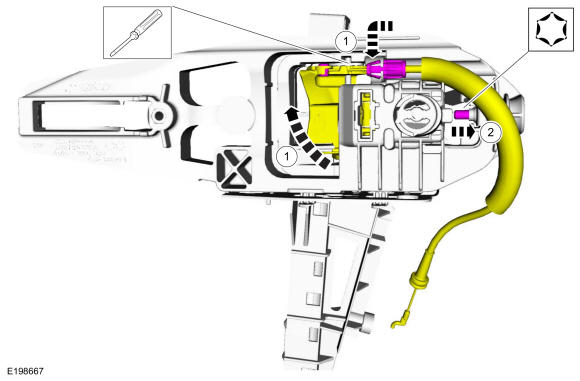

Install the exterior rear door handle reinforcement.
1. Install the cable eyelet to the lever.
2. While keeping tension on the cable and holding the handle lever in the engaged position, turn the release screw until the handle lever is positioned against the stop.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

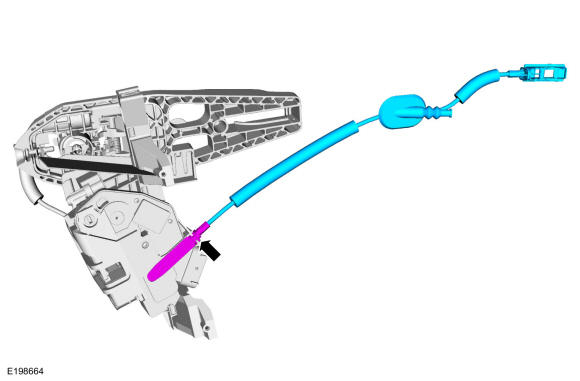

Install the interior rear door handle cable to the rear door latch.

Courtesy of FORD MOTOR COMPANY
