Liftgate Release Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

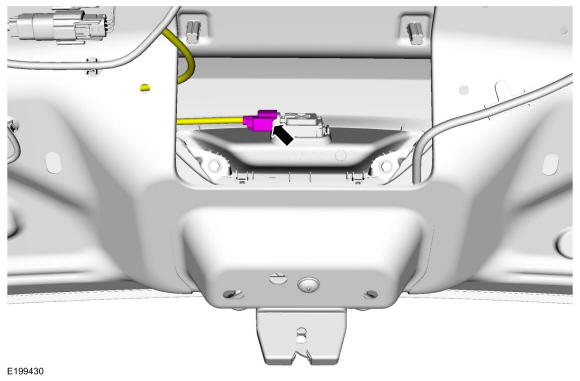

  2. Disconnect the electrical connector.
    GFD283583Courtesy of FORD MOTOR COMPANY

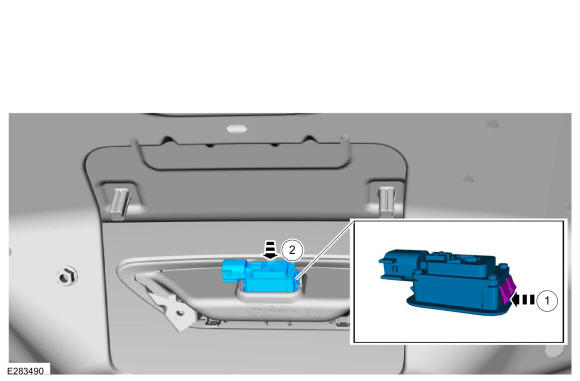

  3. Remove the liftgate release switch.

    1. Press the retaining tabs on the liftgate release switch.
    2. Remove the liftgate release switch.

GFD283584Courtesy of FORD MOTOR COMPANY
