Keyless Entry Rear Antenna: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .
  2. Remove the keyless entry rear antenna.

    1. Disconnect the keyless entry rear antenna electrical connector.
    2. Remove the retainers and the keyless entry rear antenna.

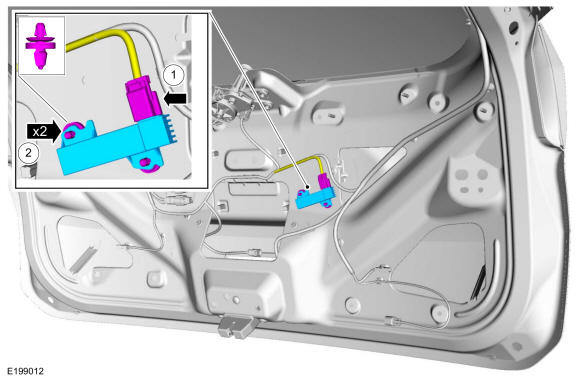

GFD283580Courtesy of FORD MOTOR COMPANY
