Hood Latch Release Cable: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Front Cable

Remove the hood latch. Refer to: Hood Latch .
Open the top cover.
1. Release the clips.
2. Open the top cover.
Courtesy of FORD MOTOR COMPANY
Disconnect the cable end and position aside the hood latch release cable.

Courtesy of FORD MOTOR COMPANY
Remove the front hood latch release cable.

Courtesy of FORD MOTOR COMPANY

Rear Cable

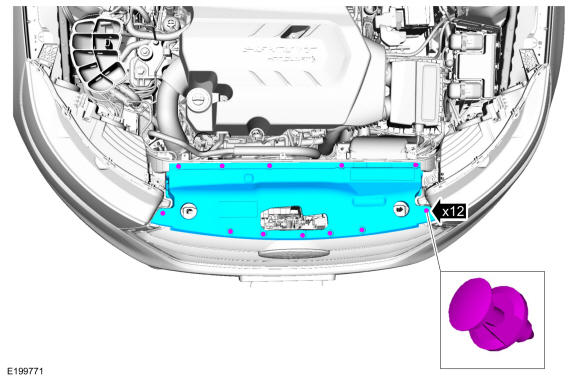

Remove the pin-type retainers and the radiator sight shield.

Courtesy of FORD MOTOR COMPANY

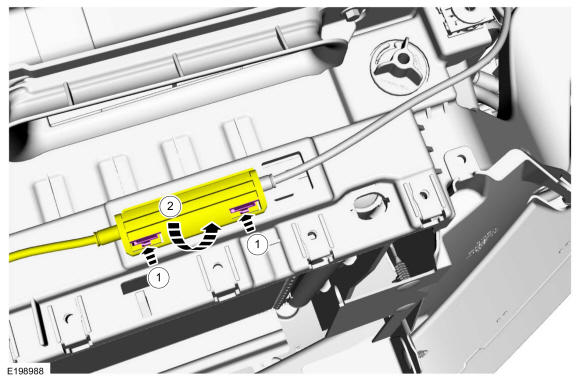

Open the top cover.
1. Release the clips.
2. Open the top cover.
Courtesy of FORD MOTOR COMPANY

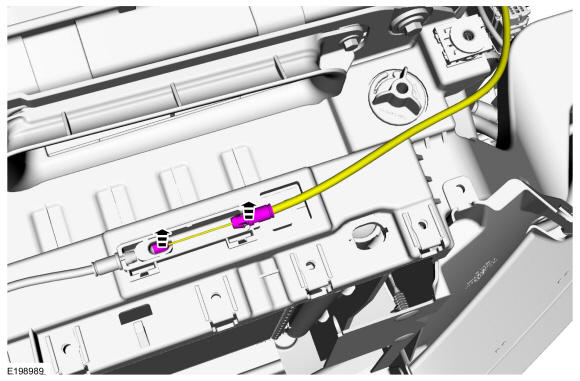

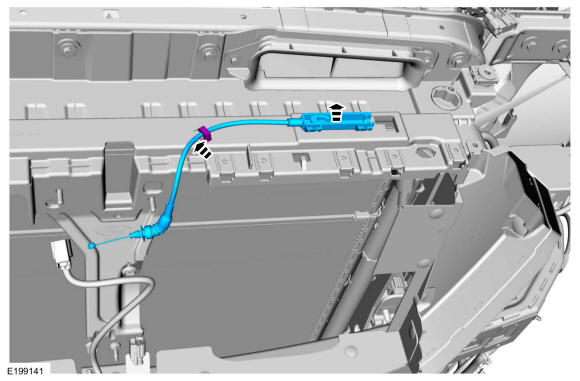

Disconnect the cable end and position aside the hood latch release cable.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. Refer to: Air Cleaner - 2.0L . Refer to: Air Cleaner - 2.7L . Refer to: Air Cleaner - 3.5L .
Remove the battery tray. Refer to: Battery Tray .

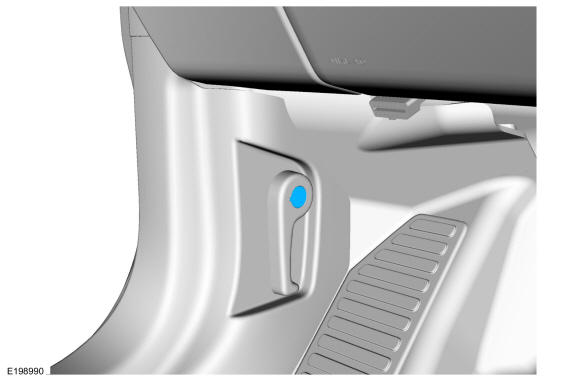

Remove the hood latch release handle access cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Insert a 10mm 1/4 inch drive socket to release the clips.

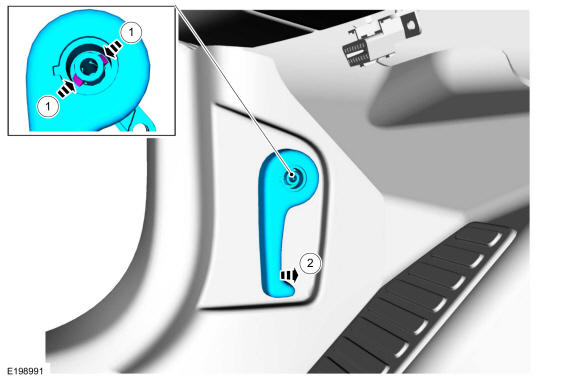

Remove the hood latch release handle.
1. Release the hood latch release handle retaining clips.
2. Remove the hood latch release handle.
Courtesy of FORD MOTOR COMPANY

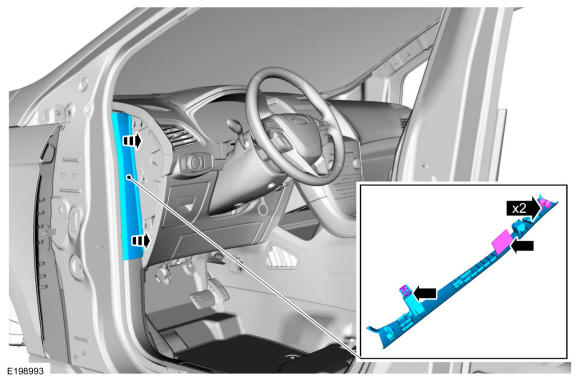

Remove the LH instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

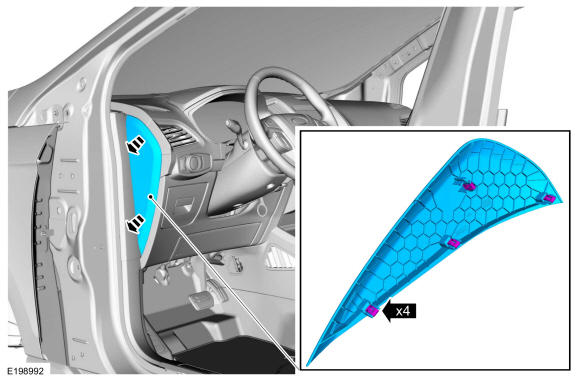

Remove the LH cowl trim panel.

Courtesy of FORD MOTOR COMPANY

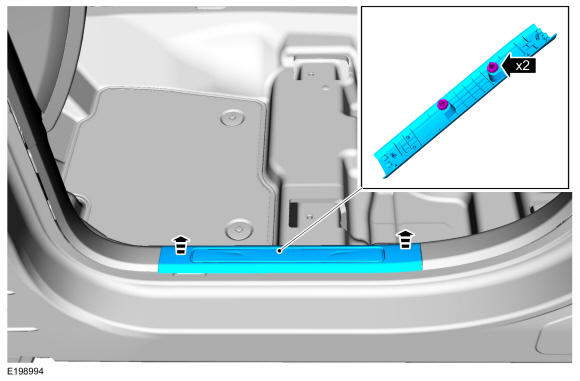

Remove the driver door scuff plate.

Courtesy of FORD MOTOR COMPANY

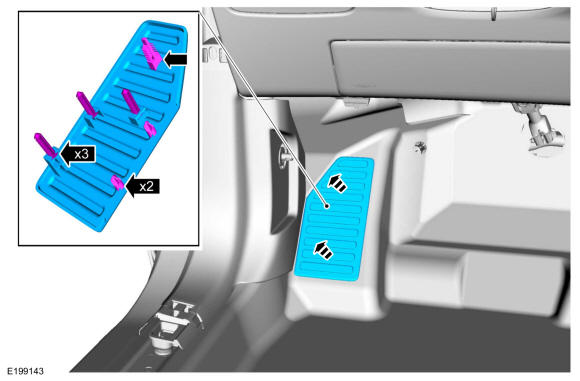

Release the clips and remove the front foot rest pad.

Courtesy of FORD MOTOR COMPANY

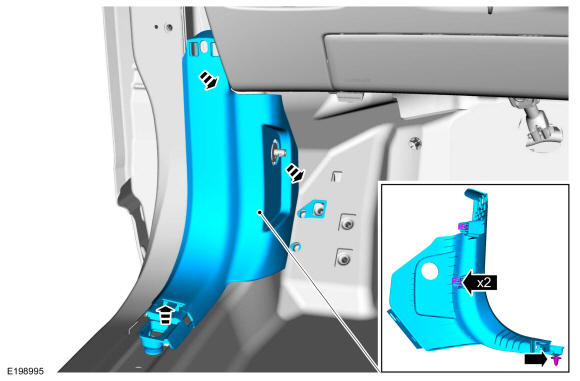

Release the clips and remove the LH side kick panel.

Courtesy of FORD MOTOR COMPANY

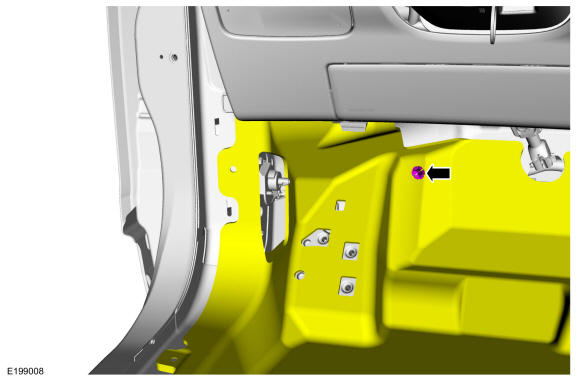

Remove the clip and position aside the carpet.

Courtesy of FORD MOTOR COMPANY

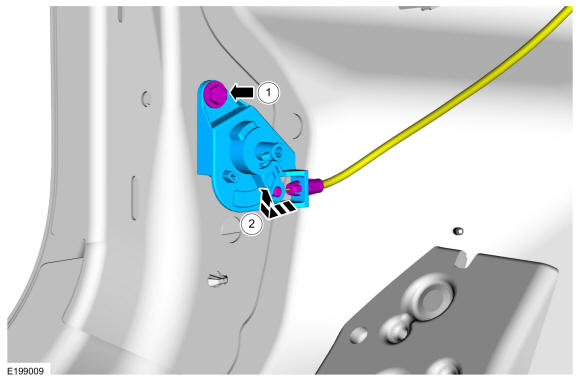

Remove the hood latch release and disconnect the rear hood latch release cable.
1. Remove the bolt.
  Torque: 80 lb.in (9 Nm)
2. Disconnect the rear hood latch release cable.
Courtesy of FORD MOTOR COMPANY

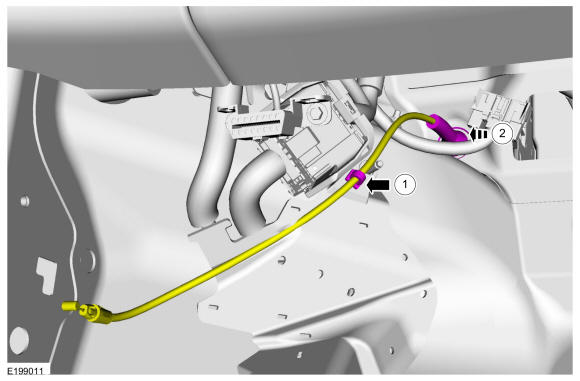

Route the rear hood latch release cable through the cowl.
1. Release the routing clip.
2. Route the rear hood latch release cable through the cowl.
Courtesy of FORD MOTOR COMPANY

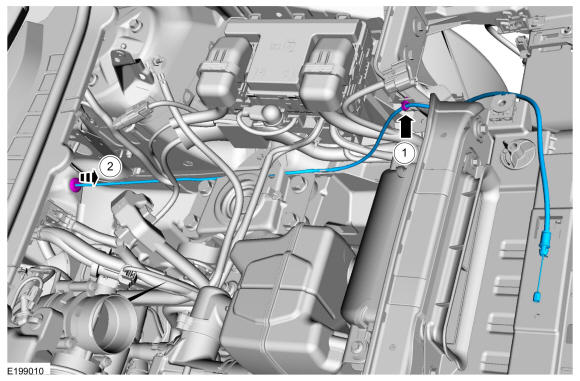

Remove the rear hood latch release cable through the engine compartment.
1. If equipped. Release the routing clip.
2. Route the cable through the engine compartment and remove the rear hood latch release cable.

Courtesy of FORD MOTOR COMPANY
