Fuel Filler Door Latch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel filler door assembly. Refer to: Fuel Filler Door Assembly .

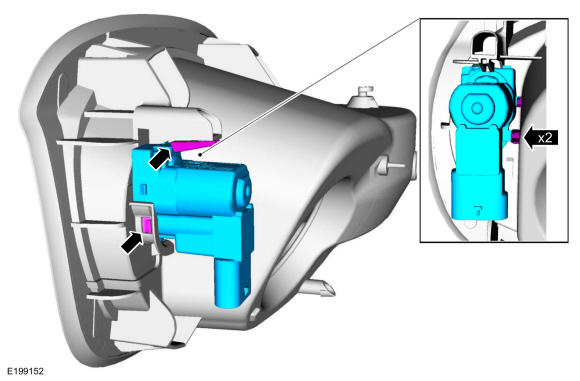

  2. Release the clips and remove the fuel filler door latch.
GFD283544Courtesy of FORD MOTOR COMPANY
