Door Lock Cylinder: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

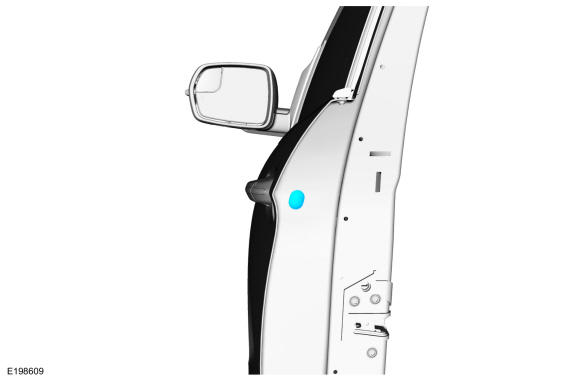

Remove the grommet.

Courtesy of FORD MOTOR COMPANY

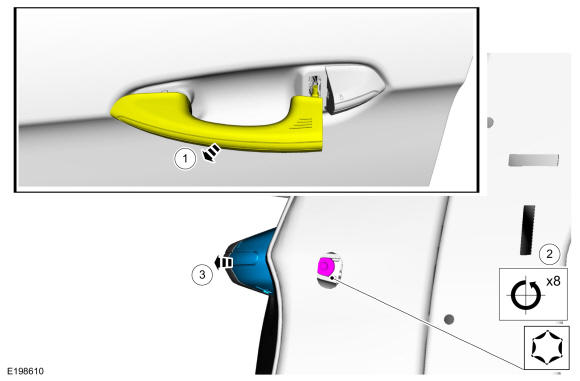

Remove the lock cylinder door handle cover.
1. Hold the front door handle open.
2. Turn the release screw 8 turns. The handle will release around 6 to 6.5 turns. You must continue to the full 8 revolutions for installation.
3. Remove the lock cylinder and the door handle cover assembly from the front door.
Courtesy of FORD MOTOR COMPANY

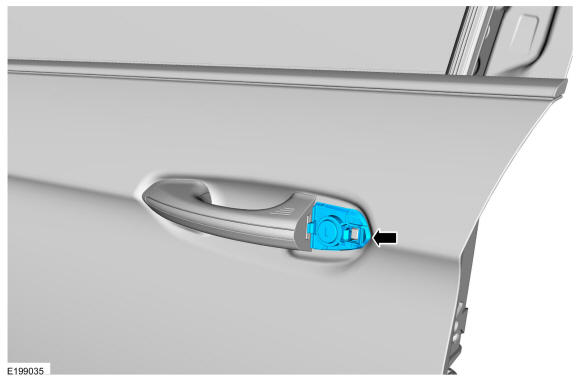

Remove the door lock cylinder.

Courtesy of FORD MOTOR COMPANY
