Door Latch Lubrication
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Special Tool(s) / General Equipment
| Flat-Bladed Screwdriver |
|---|
Materials
| Name | Specification |
|---|---|
| Motorcraft® Multi-Purpose Grease Spray XL-5-A | ESB-M1C93-B |
Activation
NOTE:
Typical left front door shown, others similar.

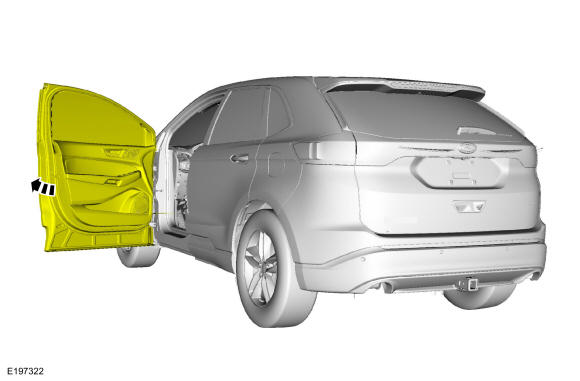

- Open the door.

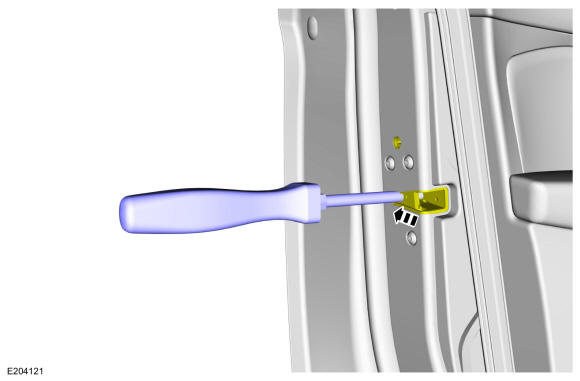

- Using a flat blade screwdriver, fully close the latch (2 clicks). Use the General Equipment: Flat-Bladed Screwdriver
-
NOTE: Do not over-lubricate the latch. Using excessive grease may damage the internal lock motor.

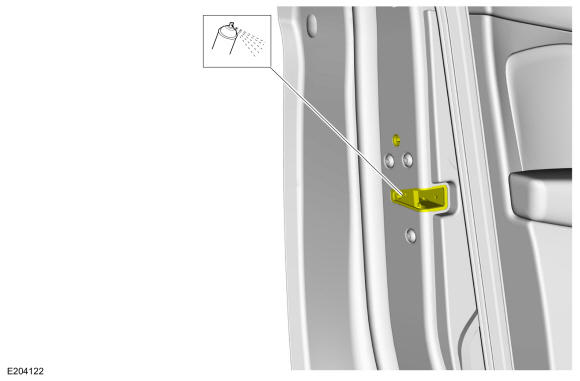

Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.
Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)
-
NOTE: Some exterior door handles are operated mechanically while other exterior door handles are operated electronically.

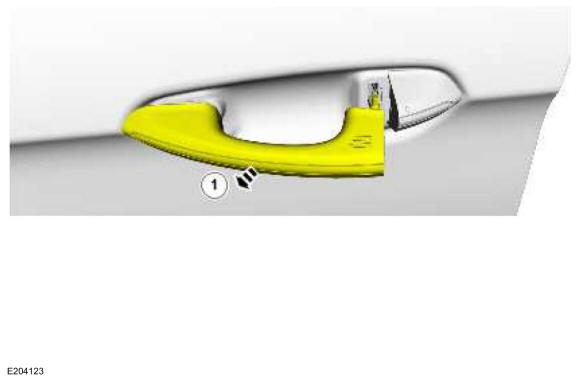

Open the latch using the exterior door handle.

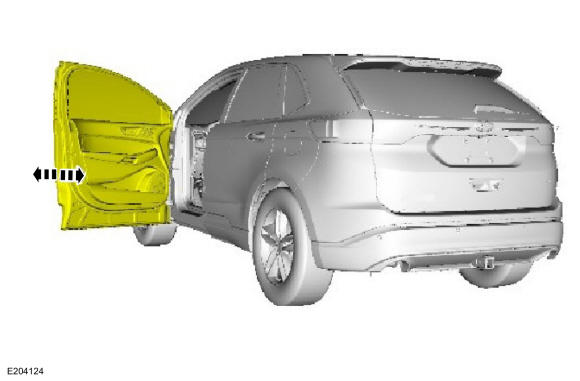

- Open and close the door several times to circulate the lubricant inside the latch.
- Open the door.

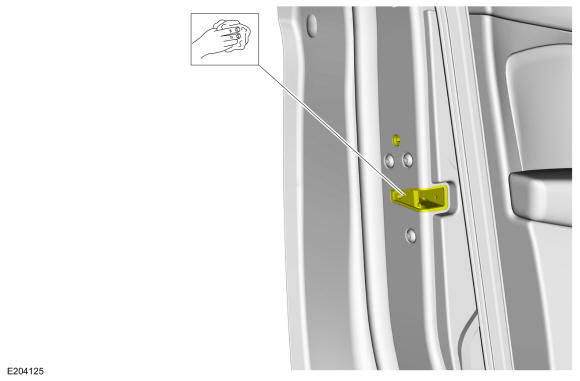

- Wipe off any excess grease.
