Overhead Console: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-

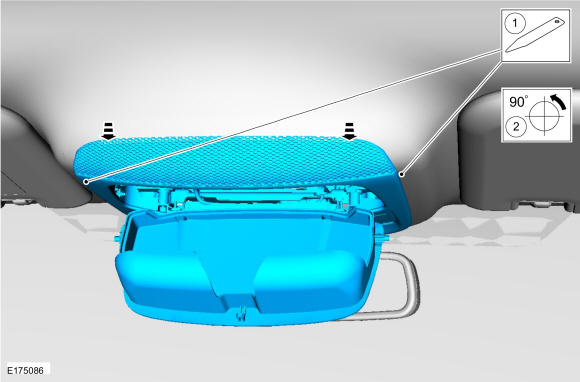

- Insert trim tool in location(s) shown.
- Rotate the tool 90 degrees to release the overhead console rear retainers.

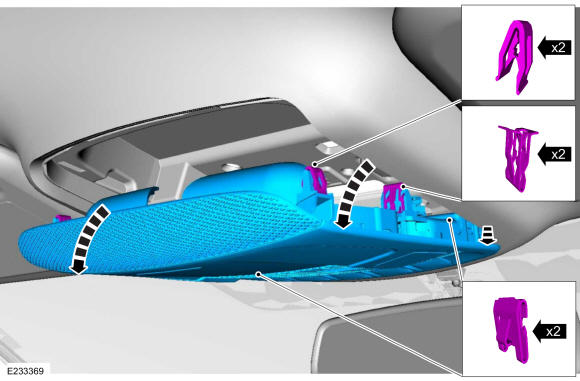

- Working from the rear to the front along each side release the overhead console retainers.

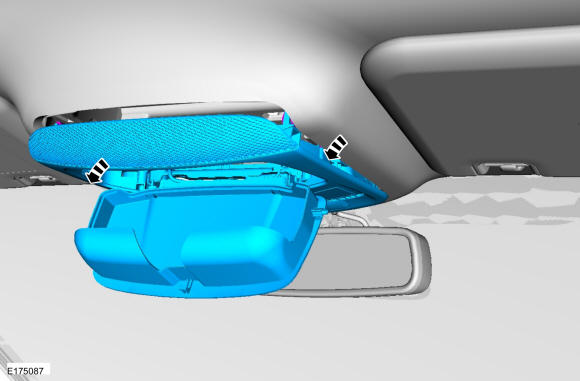

- Rotate and remove the overhead console.

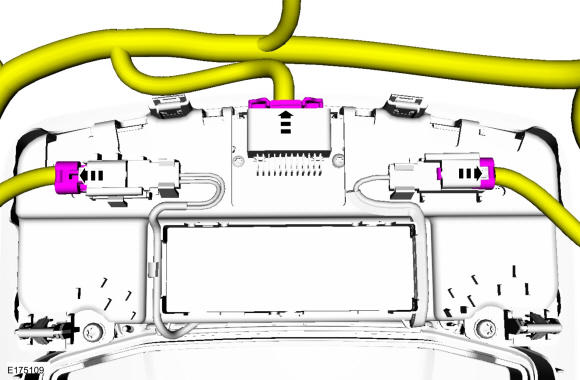

- Disconnect the electrical retainers.
