Instrument Panel Upper Section: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel. Refer to: Instrument Panel .

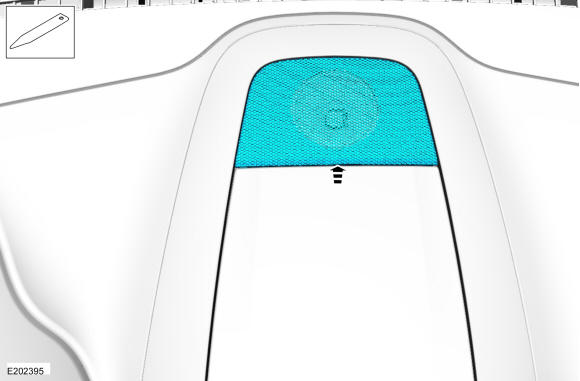

  2. Remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover
    GFD283475Courtesy of FORD MOTOR COMPANY

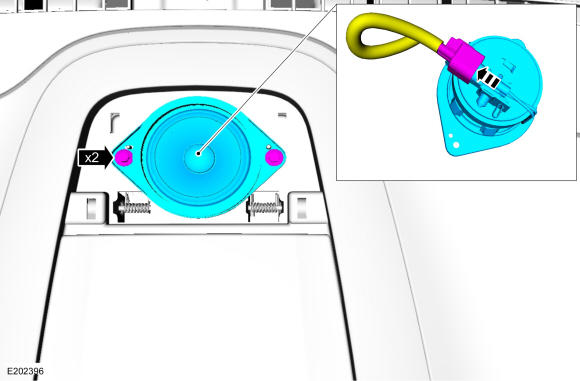

  3. Remove the bolts and the instrument panel speaker.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD282766Courtesy of FORD MOTOR COMPANY

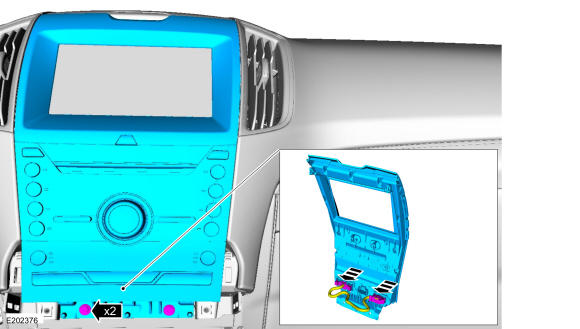

  4. NOTE: Touch screen FCIM shown, others similar.

    Remove the bolts and the FCIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD283476Courtesy of FORD MOTOR COMPANY

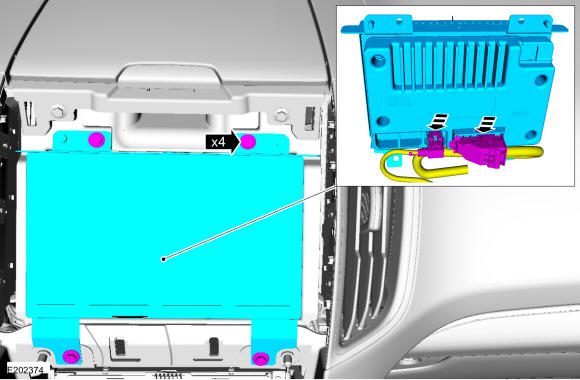

  5. NOTE: Touch screen FDIM shown, non-touch screen FCDIM similar.

    Remove the bolts and the FDIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD283477Courtesy of FORD MOTOR COMPANY

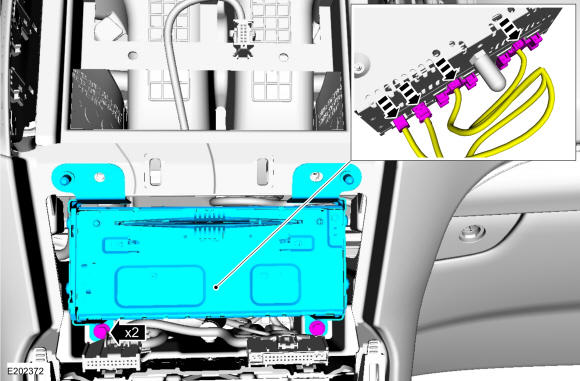

  6. Remove the bolts and the ACM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD283478Courtesy of FORD MOTOR COMPANY

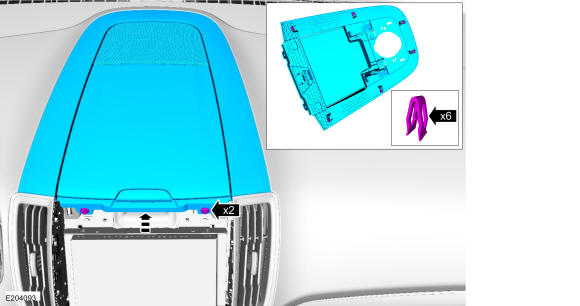

  7. Remove the bolts and the upper instrument panel storage bin.

    Torque: 22 lb.in (2.5 Nm)

    GFD283479Courtesy of FORD MOTOR COMPANY

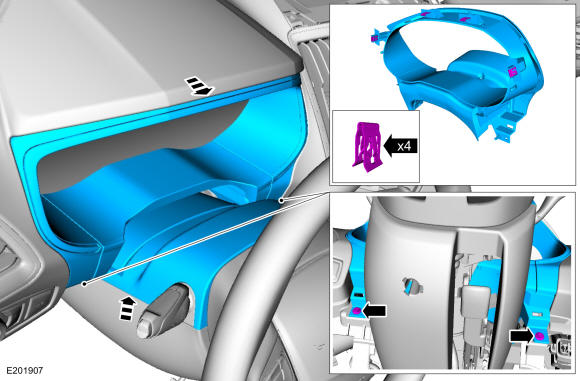

  8. Remove bolts, release the clips and remove the IPC bezel.

    Torque: 22 lb.in (2.5 Nm)

    GFD283480Courtesy of FORD MOTOR COMPANY

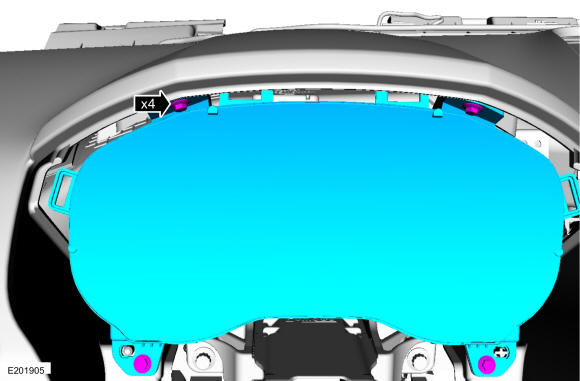

  9. Remove the bolts and the IPC.

    Torque: 22 lb.in (2.5 Nm)

    GFD283481Courtesy of FORD MOTOR COMPANY

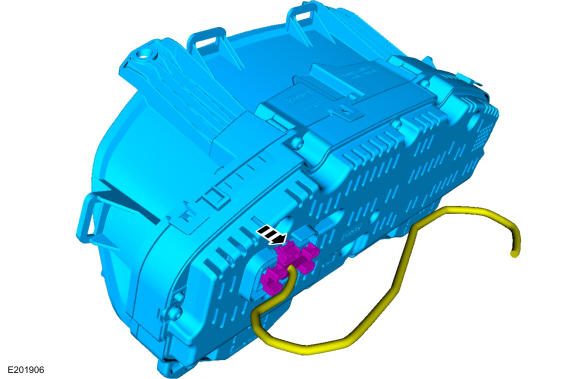

  10. Disconnect the electrical connector.
    GFD283482Courtesy of FORD MOTOR COMPANY

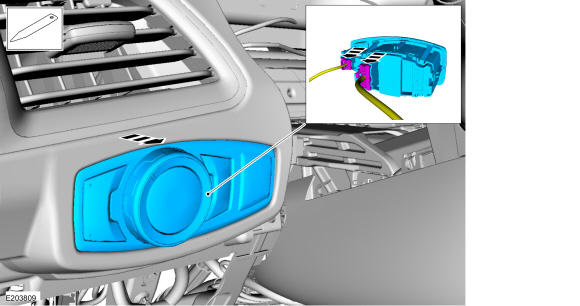

  11. Remove the headlamp switch.

    • Disconnect the electrical connector.

    GFD283483Courtesy of FORD MOTOR COMPANY

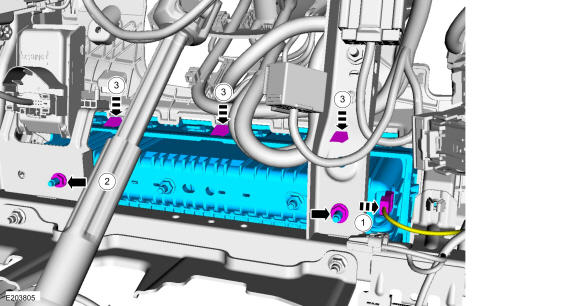

    • Disconnect the electrical connector.

    • Remove the bolts.

      Torque: 71 lb.in (8 Nm)

    • Through the opening, push the tabs down and detach the clips.

    GFD283484Courtesy of FORD MOTOR COMPANY

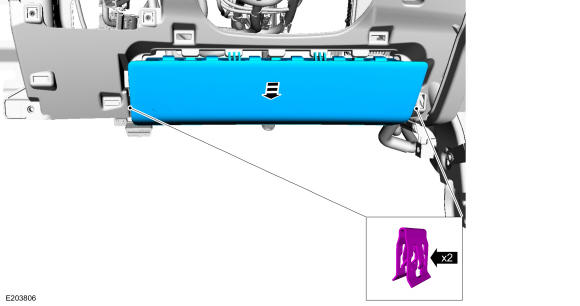

  12. Pivot the driver knee airbag down, separate the knee bolster clips and remove the driver knee airbag.
    GFD283485Courtesy of FORD MOTOR COMPANY

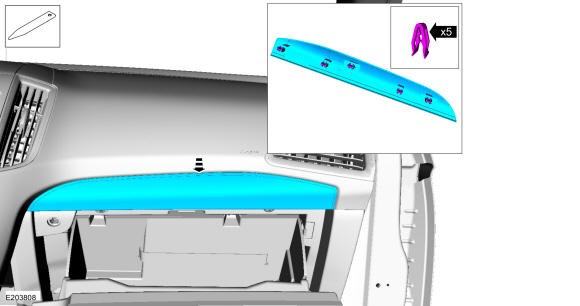

  13. Release the clips and remove the glove compartment finish panel.
    GFD283486Courtesy of FORD MOTOR COMPANY

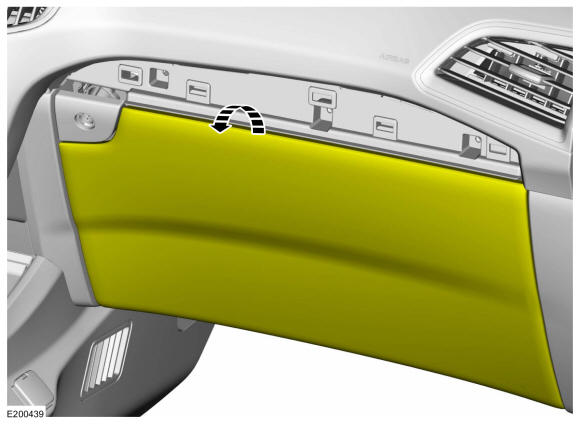

  14. Open the glove compartment.
    GFD283487Courtesy of FORD MOTOR COMPANY

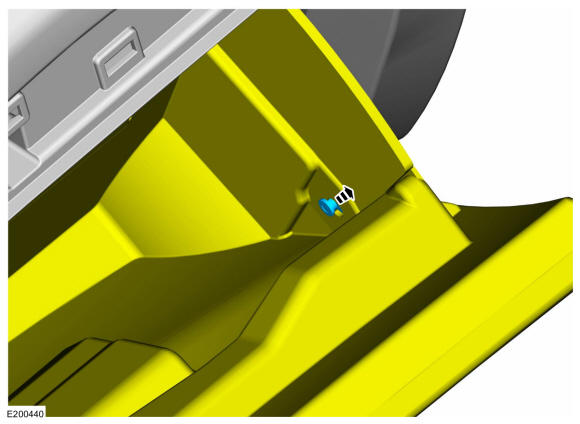

  15. Detach the glove compartment damper.
    GFD283488Courtesy of FORD MOTOR COMPANY

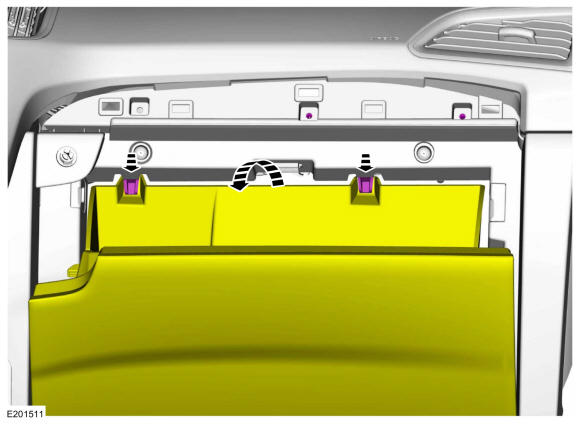

  16. Release the tabs and fully lower the glove compartment.
    GFD283489Courtesy of FORD MOTOR COMPANY

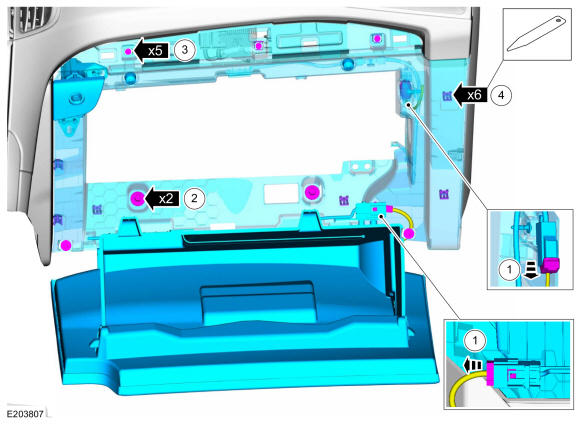

    1. Disconnect the electrical connectors.
    2. Remove the bolts.

      Torque: 35 lb.in (4 Nm)

    3. Remove the screws.

      Torque: 22 lb.in (2.5 Nm)

    4. Release the clips and remove the glove compartment. Use the General Equipment: Interior Trim Remover
    GFD283490Courtesy of FORD MOTOR COMPANY

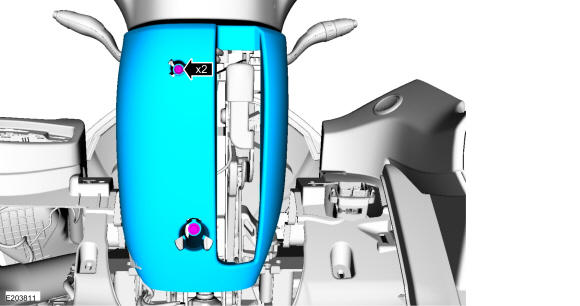

  17. Remove the screws and the lower steering column shroud.

    Torque: 22 lb.in (2.5 Nm)

    GFD283491Courtesy of FORD MOTOR COMPANY

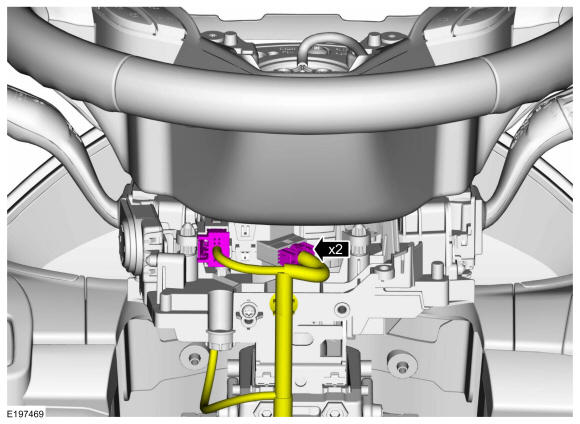

  18. Disconnect the electrical connectors.
    GFD283492Courtesy of FORD MOTOR COMPANY

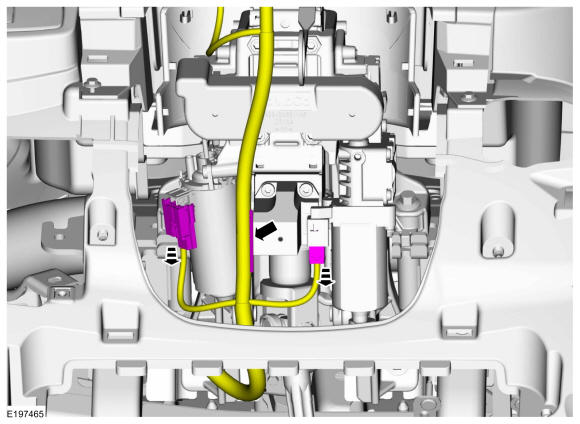

  19. NOTE: Vehicles with power adjustable steering column.

    Detach the retainer, disconnect the power tilt motor and power telescopic motor electrical connectors.

    GFD283493Courtesy of FORD MOTOR COMPANY

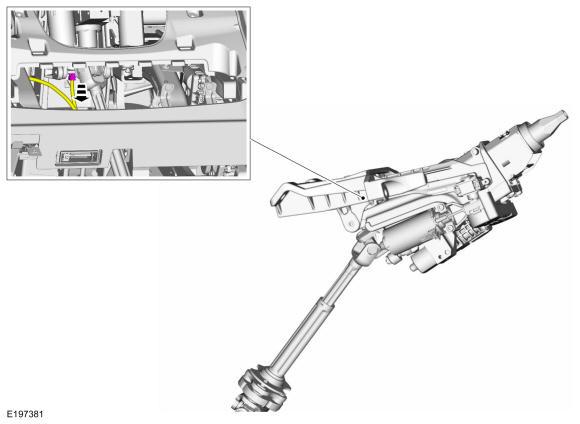

  20. Disconnect the deployable column electrical connector.
    GFD283494Courtesy of FORD MOTOR COMPANY

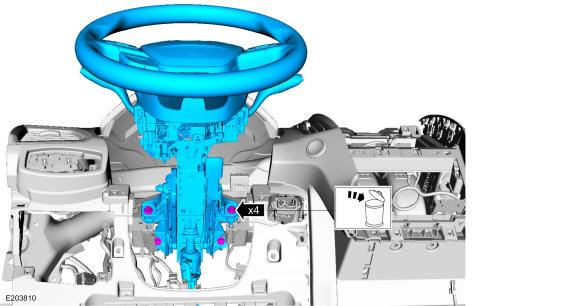

  21. NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolts and remove the steering column.

    Torque: 18 lb.ft (25 Nm)

    GFD283495Courtesy of FORD MOTOR COMPANY

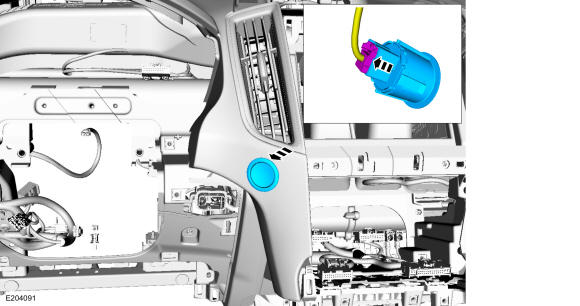

  22. Remove the engine start stop button.

    • Disconnect the electrical connector.

    GFD283496Courtesy of FORD MOTOR COMPANY

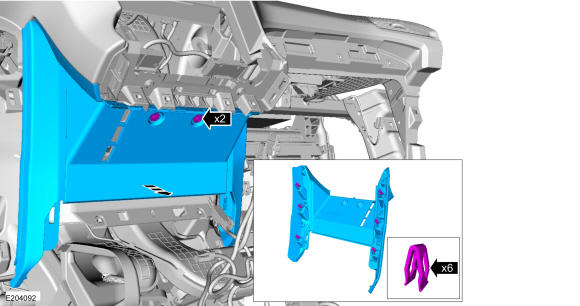

  23. Remove the 2 screws, release the clips and remove the lower instrument panel trim panel.
    GFD283497Courtesy of FORD MOTOR COMPANY

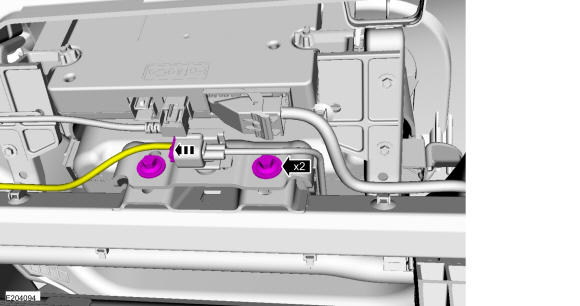

  24. Remove passenger airbag to cross car beam bolts.

    • Disconnect the electrical connector.

      Torque: 80 lb.in (9 Nm)

    GFD283498Courtesy of FORD MOTOR COMPANY

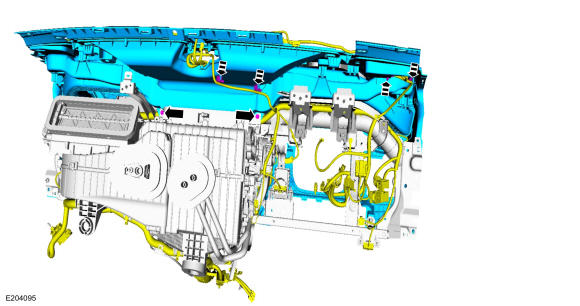

  25. Remove the HVAC to instrument panel upper section bolts.

    • Detach the wiring harness from the instrument panel upper section and position aside.

      Torque: 35 lb.in (4 Nm)

    GFD283499Courtesy of FORD MOTOR COMPANY

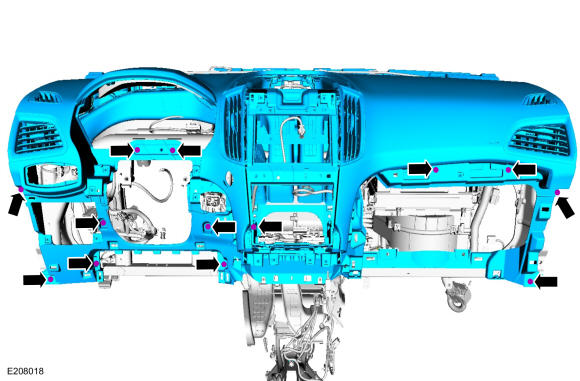

  26. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

    Remove the instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.

    Torque: 22 lb.in (2.5 Nm)

GFD283500Courtesy of FORD MOTOR COMPANY
