Floor Console: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

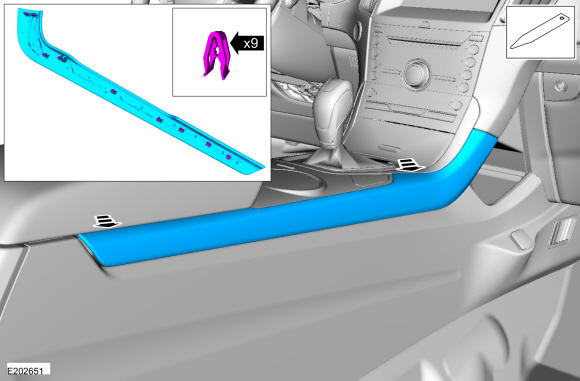

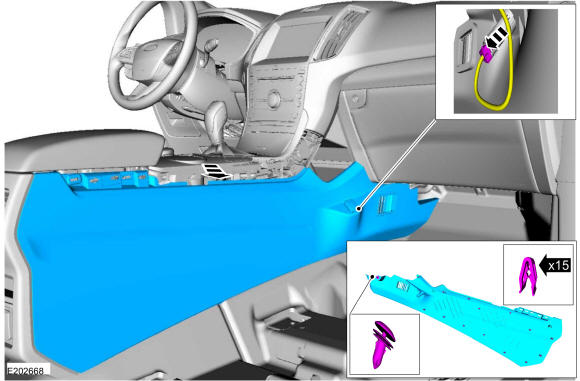

Release the clips, push pin and remove the RH floor console side trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

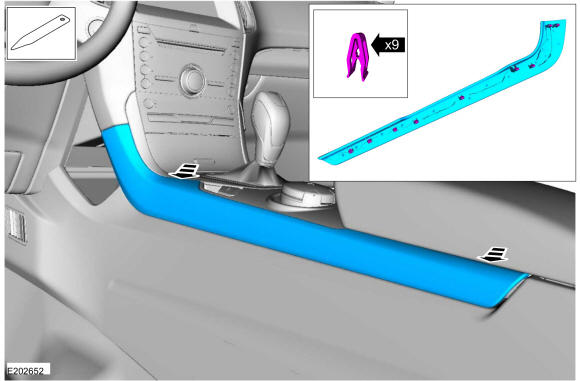

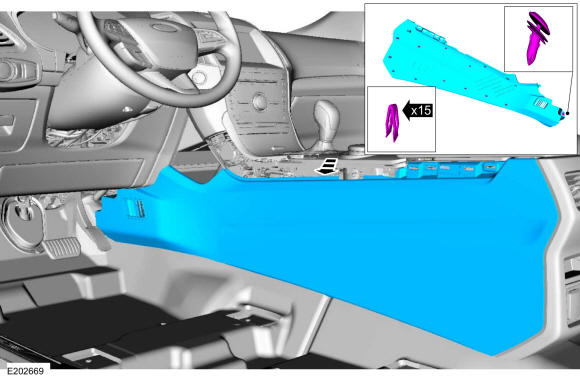

Release the clips, push pin and remove the LH floor console side trim panel.

Courtesy of FORD MOTOR COMPANY

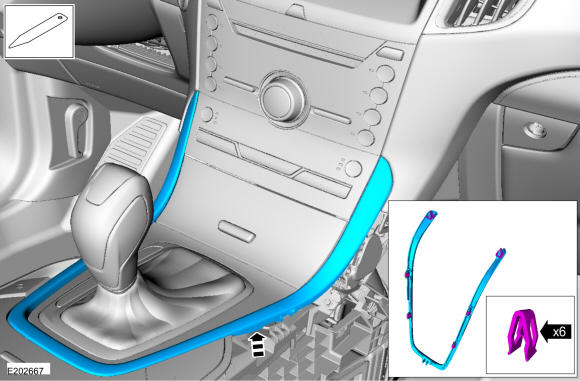

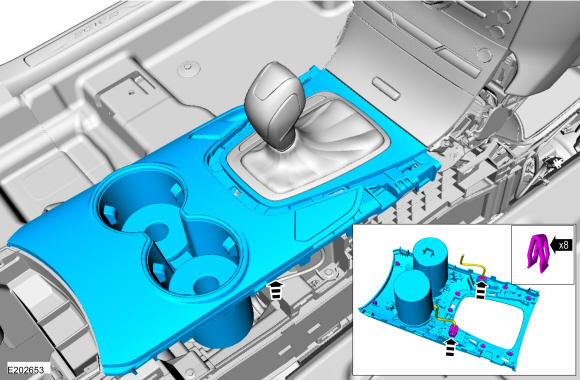

Release the clips and remove the upper floor console finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

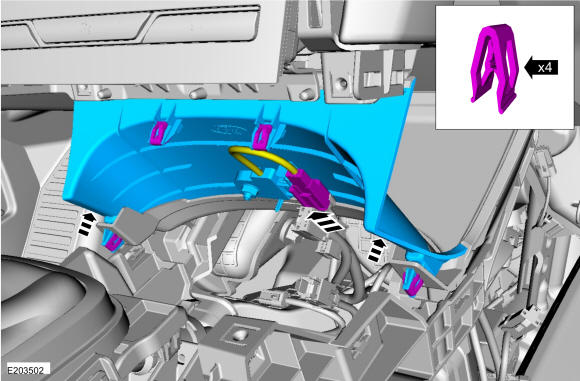

Release the clips and remove the floor console upper trim panel.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

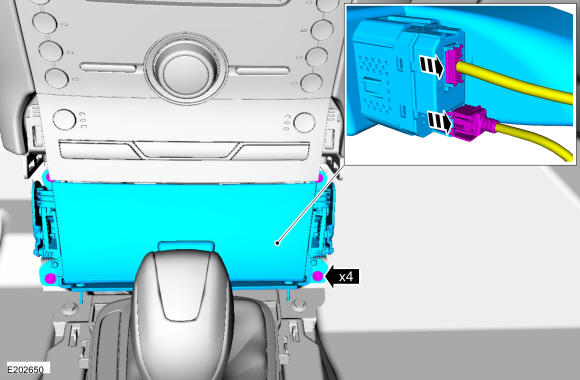

Remove the bolts and the media bin.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

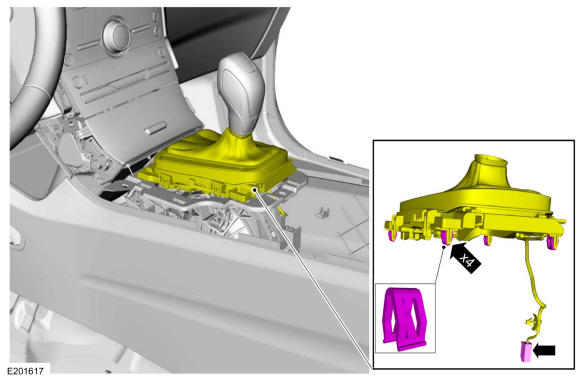

Release the clips, lift the selector lever bezel up and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

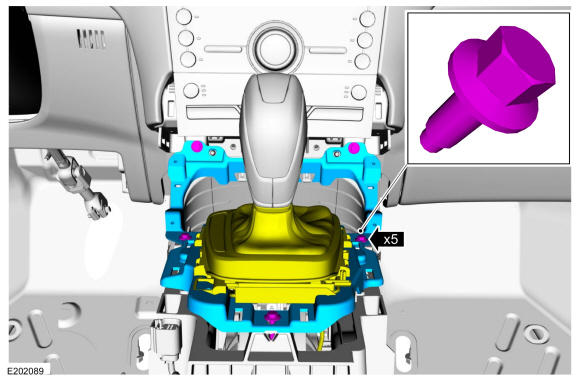

Remove the bolts and the floor console support.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the floor console storage bin upper trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

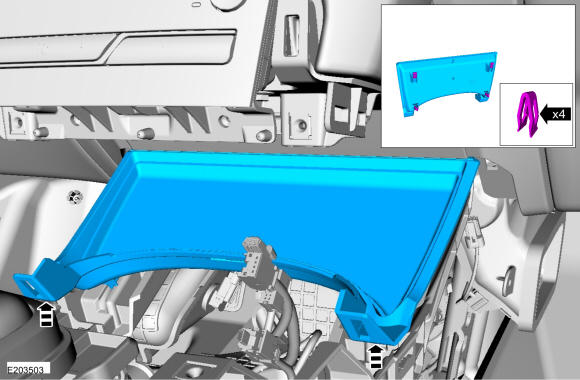

Release the clips and remove the storage bin lower trim panel.

Courtesy of FORD MOTOR COMPANY

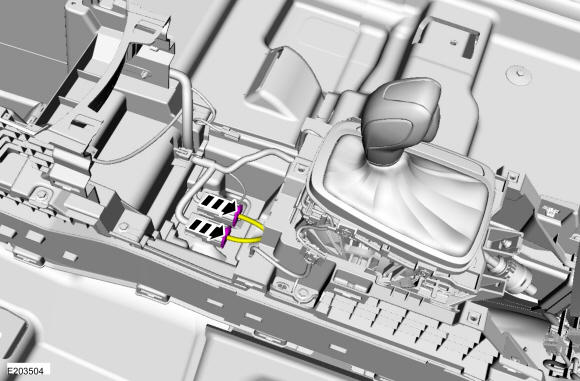

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

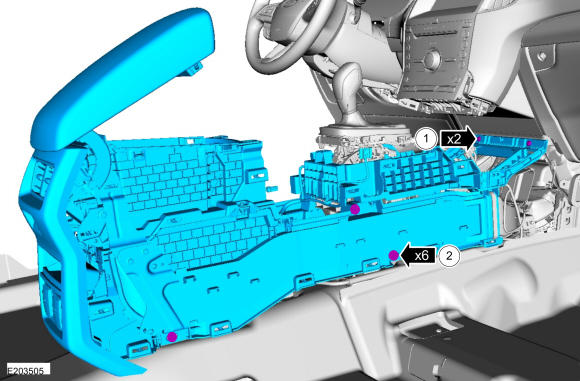

1. Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
2. Remove the bolts.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
