Auxiliary Power Point: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

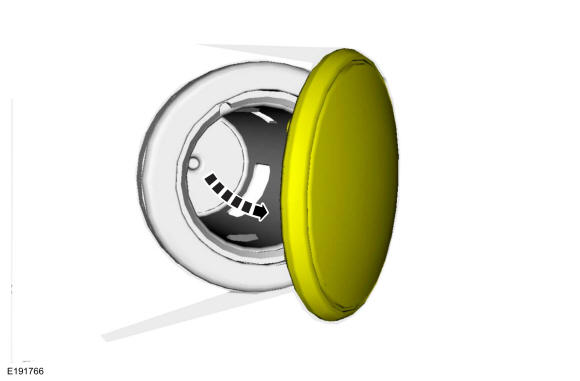

  1. Open the power point cover
    GFD283431Courtesy of FORD MOTOR COMPANY

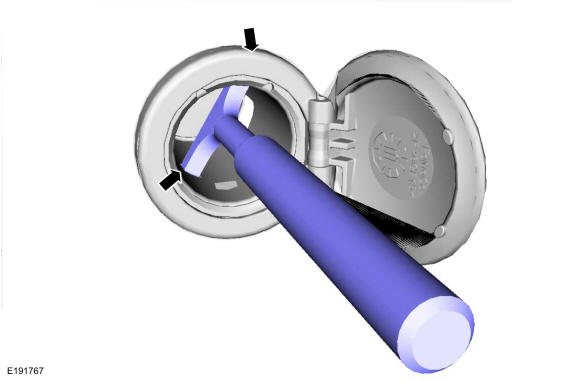

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD283432Courtesy of FORD MOTOR COMPANY

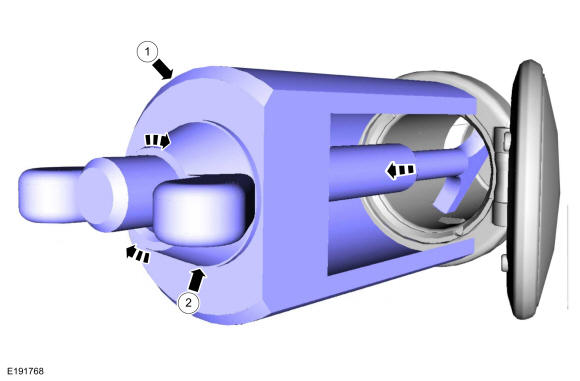

    1. Install the receiver cup
    2. Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD283433Courtesy of FORD MOTOR COMPANY

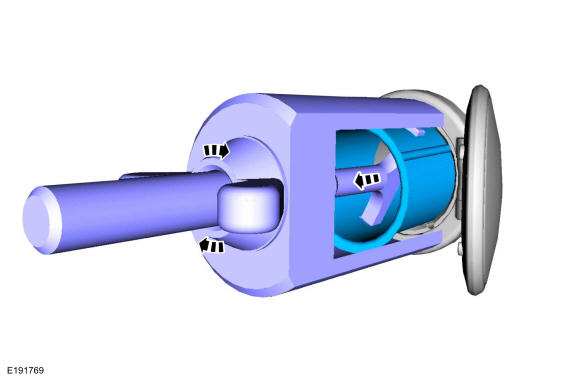

  4. Tighten the wing nut to pull the power point socket out of the retainer.
    GFD283434Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD283435Courtesy of FORD MOTOR COMPANY
