Rear Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel .

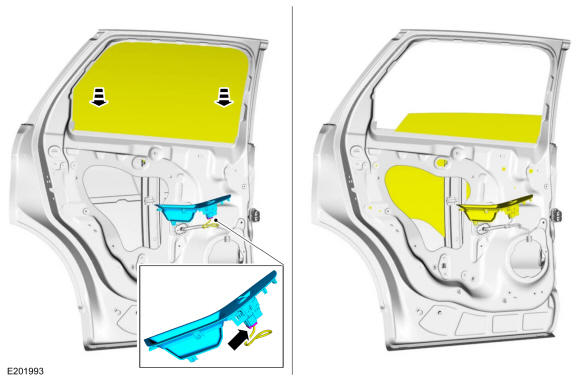

Install the rear window control switch and lower the rear window glass to full down position.

Courtesy of FORD MOTOR COMPANY

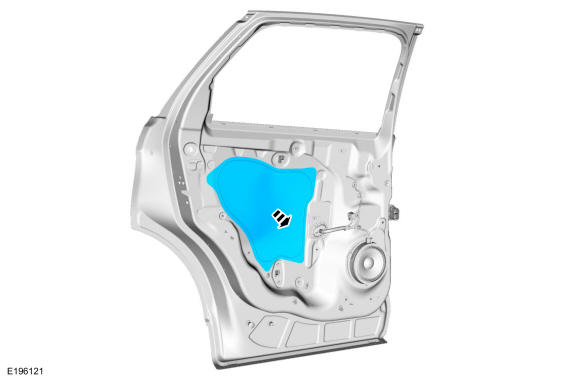

Remove the rear door watershield.

Courtesy of FORD MOTOR COMPANY

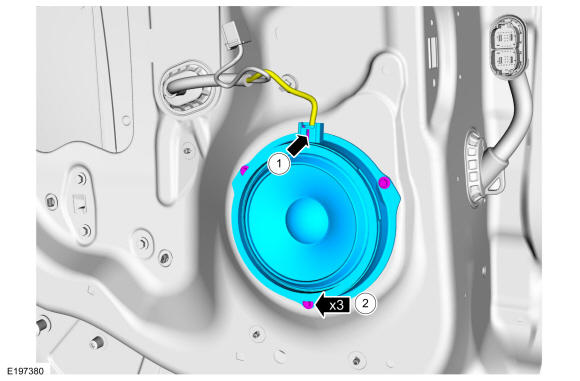

Remove the rear door speaker.
1. Disconnect the electrical connector and position aside the wiring harness.
2. Remove the retainers and remove the rear door speaker.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

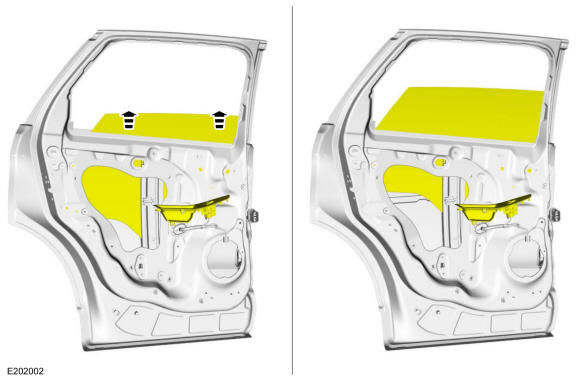

Position the rear door window glass to the one-half position.

Courtesy of FORD MOTOR COMPANY

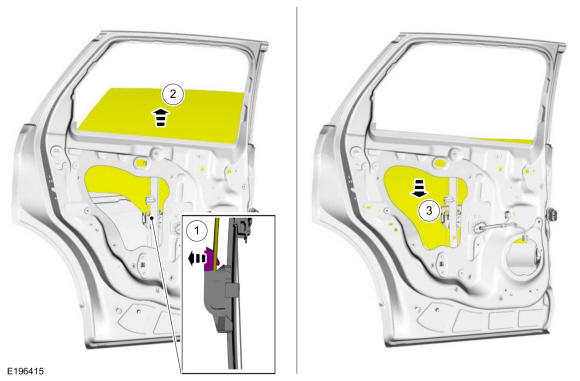

Lower the window glass to the full down position.
1. Release the rear door window clip.
2. Move the rear door window glass out of the rear door window clip.
3. Lower the window glass to the full down position.
Courtesy of FORD MOTOR COMPANY
Remove the aft rear door upper moulding. Refer to: Rear Door Upper Moulding .

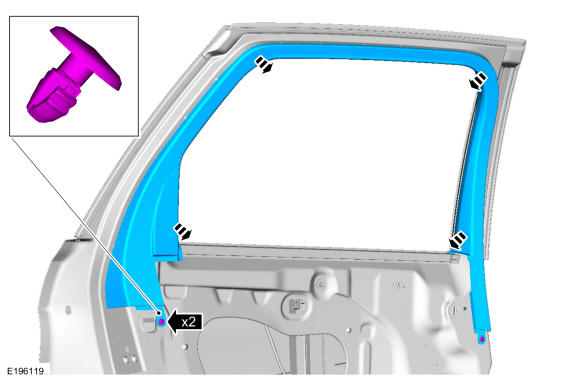

Remove the retainers and the inner upper door trim.

Courtesy of FORD MOTOR COMPANY

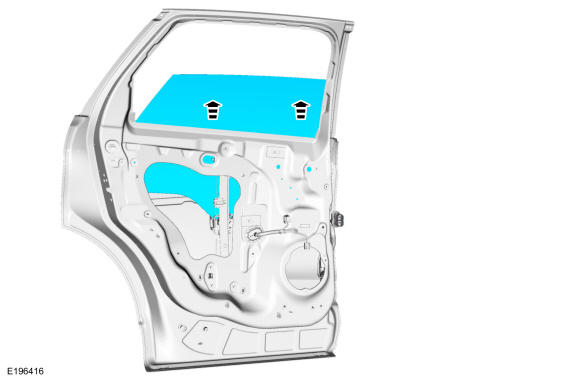

Remove the rear door window glass.

Courtesy of FORD MOTOR COMPANY
