Rear Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door window glass. Refer to: Rear Door Window Glass .
Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .
Remove the inner belt moulding.

Courtesy of FORD MOTOR COMPANY

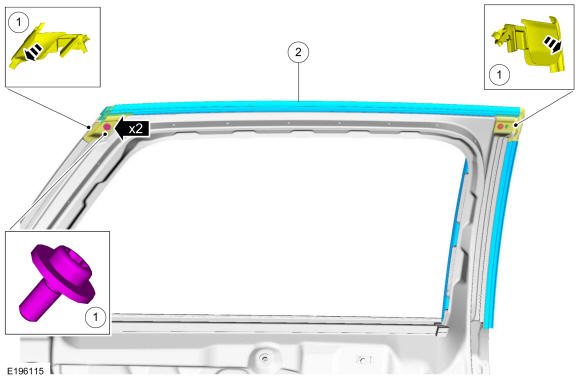

Remove the rear door glass top run.
1. Position aside the top run upper corners and remove the retainers.
  Torque

  : 9 lb.in (1 Nm)
2. Remove the rear door glass top run.

Courtesy of FORD MOTOR COMPANY
