Passenger Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger door window control switch.

    1. Remove the passenger door window control switch and the bezel assembly.
    2. Disconnect the passenger door window control switch electrical connector.

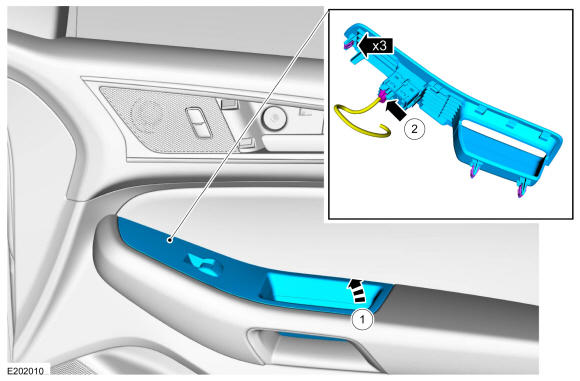

    GFD283409Courtesy of FORD MOTOR COMPANY
  2. NOTE: This step is only necessary when installing a new component.

    Remove the passenger side front door window control switch.

    1. Release the retaining tabs from the passenger side front door window control switch.
    2. Remove the passenger side front door window control switch from the bezel.

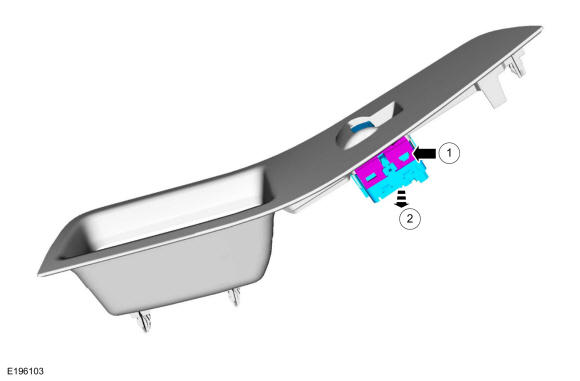

GFD283410Courtesy of FORD MOTOR COMPANY
