Front Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the front door trim panel. Refer to: Front Door Trim Panel .

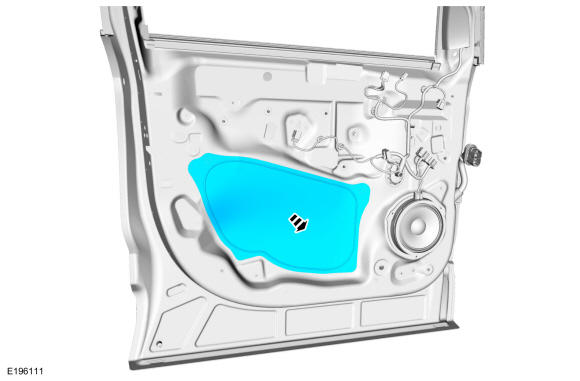

  2. Remove the watershield.
    GFD283397Courtesy of FORD MOTOR COMPANY

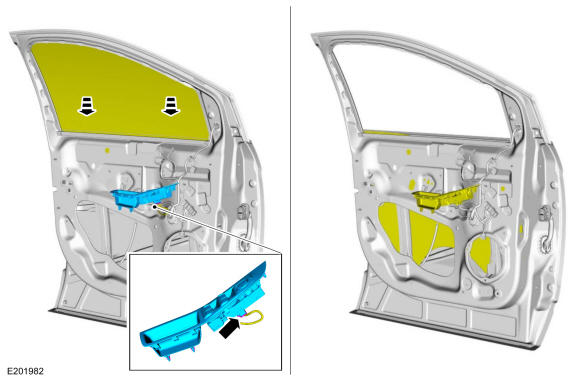

  3. Install the front door window control switch and lower the glass to full down position.
    GFD283398Courtesy of FORD MOTOR COMPANY
  4. Remove the inner belt moulding.
    GFD283399Courtesy of FORD MOTOR COMPANY

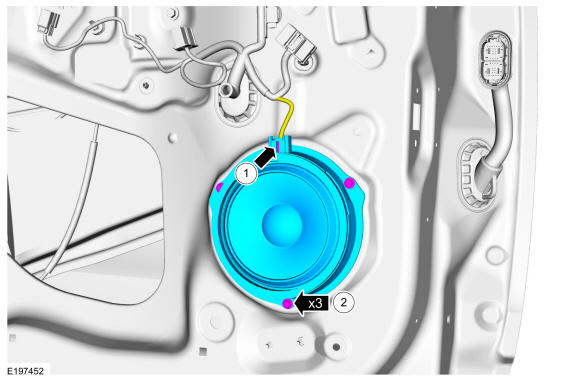

  5. Remove the front door speaker.

    1. Disconnect the electrical connector and position aside the wiring harness.
    2. Remove the retainers and remove the front door speaker.

      Torque

      : 22 lb.in (2.5 Nm)

    GFD283400Courtesy of FORD MOTOR COMPANY

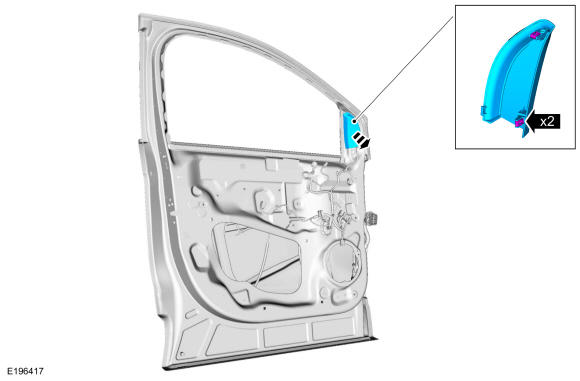

  6. Release the clips and remove the sail panel trim cover.
    GFD283401Courtesy of FORD MOTOR COMPANY

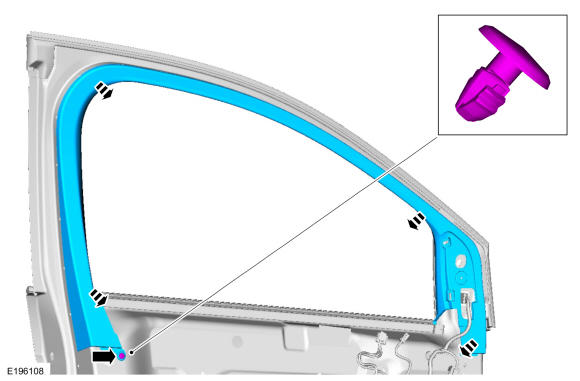

  7. Remove the retainer and the inner upper door trim.
    GFD283402Courtesy of FORD MOTOR COMPANY

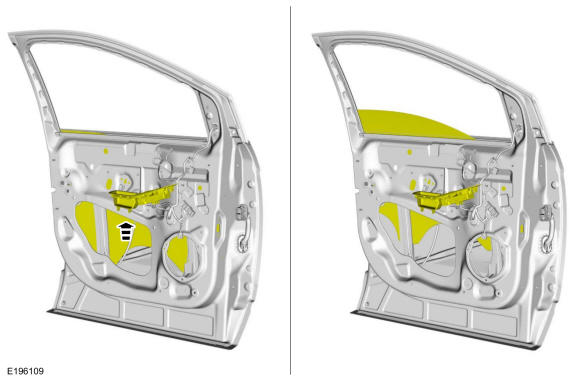

  8. Raise the rear door window glass to the one-quarter position.
    GFD283403Courtesy of FORD MOTOR COMPANY

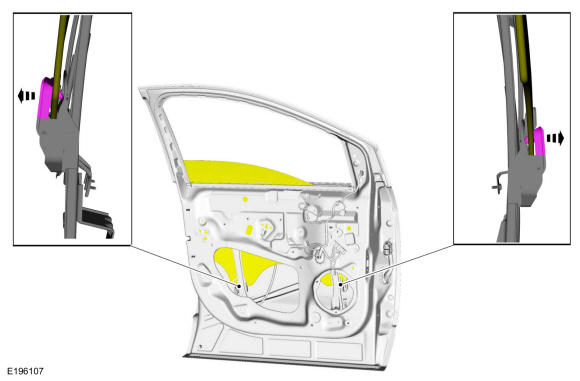

  9. Release the retaining clips from front door window glass.
    GFD283404Courtesy of FORD MOTOR COMPANY

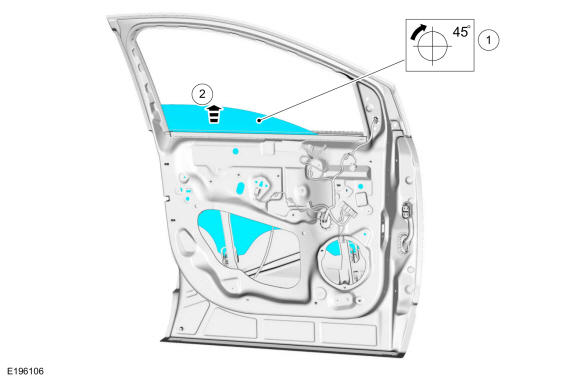

  10. Remove the front door window glass.

    1. Rotate the front door window glass 45 degrees clockwise.
    2. Remove the front door window glass.

GFD283405Courtesy of FORD MOTOR COMPANY
