Front Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front door window glass. Refer to: Front Door Window Glass .
  2. Remove the exterior mirror. Refer to: Exterior Mirror .
  3. Remove the front door upper moulding. Refer to: Front Door Upper Moulding .

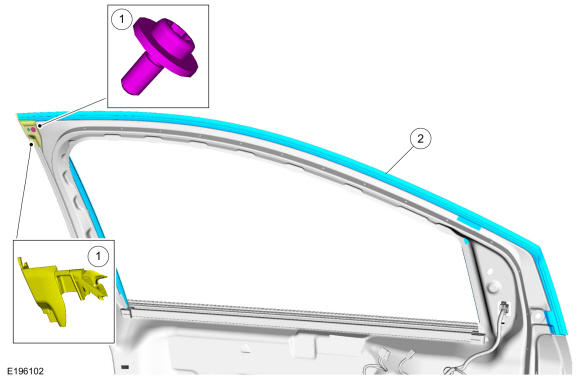

  4. Remove the front door glass top run.

    1. Position aside the top run upper corner and remove the retainer.

      Torque

      : 9 lb.in (1 Nm)

    2. Remove the front door glass top run.

GFD283396Courtesy of FORD MOTOR COMPANY
