Driver Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side shown.

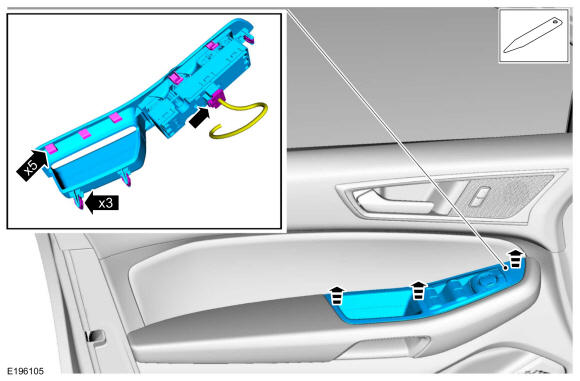

Remove the front door window control switch.
1. Remove the front door window control switch and the bezel assembly.
2. Disconnect the front door window control switch electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

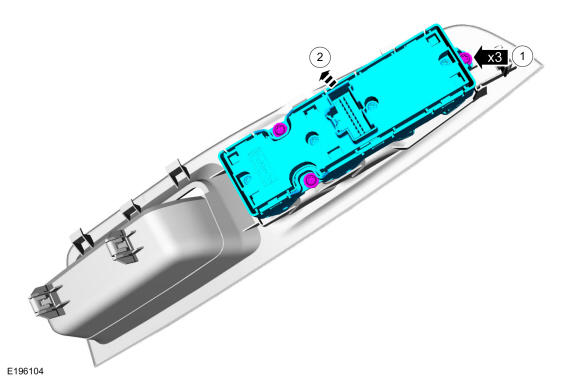

Remove the front door window control switch.
1. Remove the retainers.
2. Remove the front door window control switch from the bezel.

Courtesy of FORD MOTOR COMPANY
