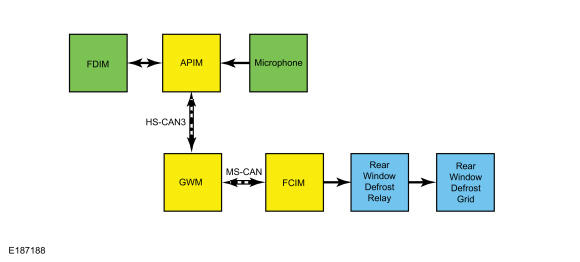

System Diagram - Rear Window Defrost
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
FDIM |
| 2 |
APIM |
| 3 |
Microphone |
| 4 |
HS-CAN3 |
| 5 |
GWM |
| 6 |
FCIM |
| 7 |
Rear Window Defrost Relay |
| 8 |
Rear Window Defrost Grid |
| 9 |
MS-CAN |
