System Diagram - Power Windows
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

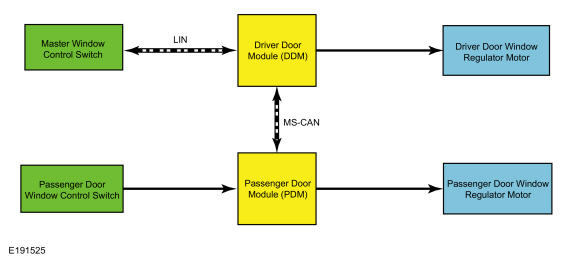

Front Power Windows
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Master Window Control Switch |
| 2 |
Driver Door Window Regulator Motor |
| 3 |
Passenger Door Module (PDM) |
| 4 |
Passenger Door Window Control Switch |
| 5 |
MS-CAN |
| 6 |
LIN |
| 7 |
Driver Door Module (DDM) |
| 8 |
Passenger Door Window Regulator Motor |
