Rear Seat Backrest: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Both seat backrests

If equipped with inflatable seatbelts, depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the rear seat cushion. Refer to: Rear Seat Cushion .

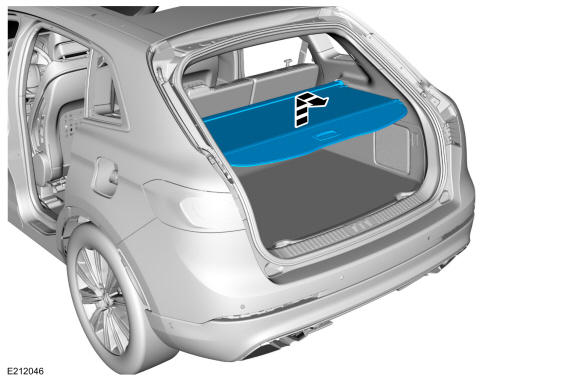

Remove the load compartment luggage cover.

Courtesy of FORD MOTOR COMPANY

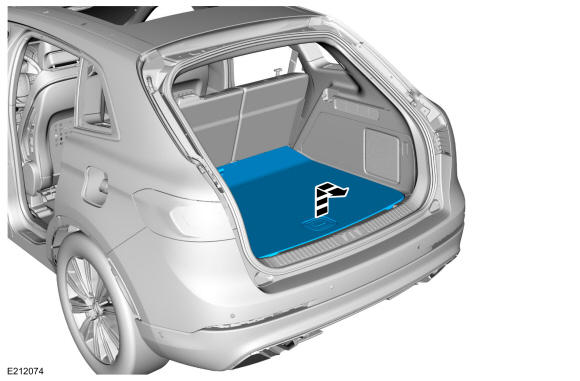

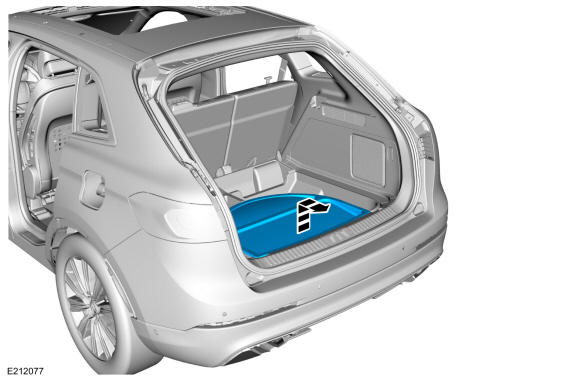

Remove the load compartment floor cover.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the spare tire cover.

Courtesy of FORD MOTOR COMPANY

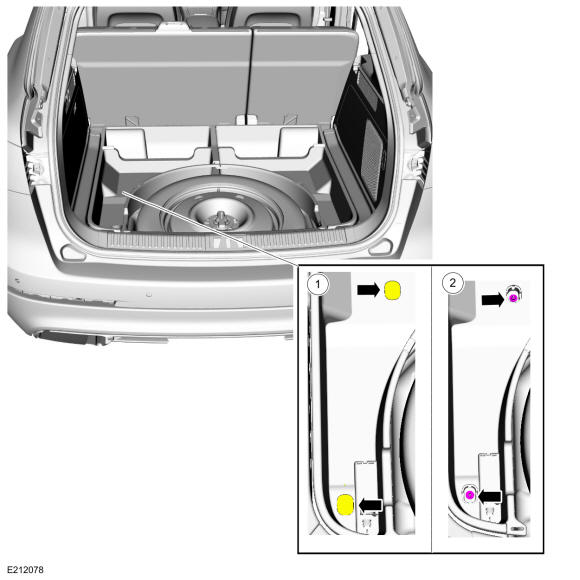

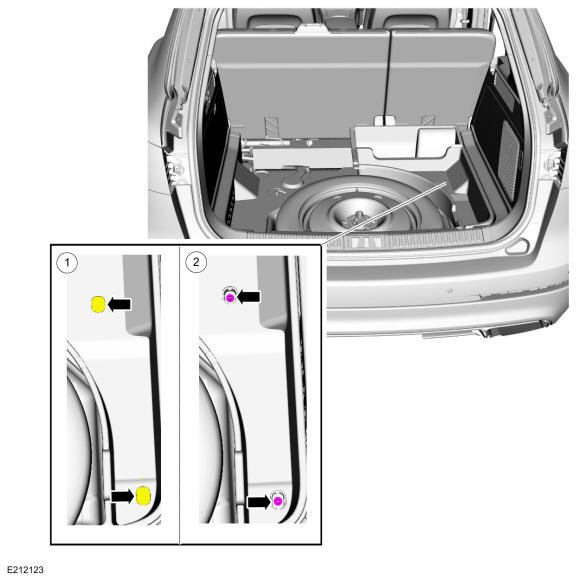

If equipped. Remove the LH side storage bin retainers.
1. NOTE: The retainer covers have tethers on them and do not fully come off.

  Position aside the retainer covers.
2. Remove the retainers.
Courtesy of FORD MOTOR COMPANY

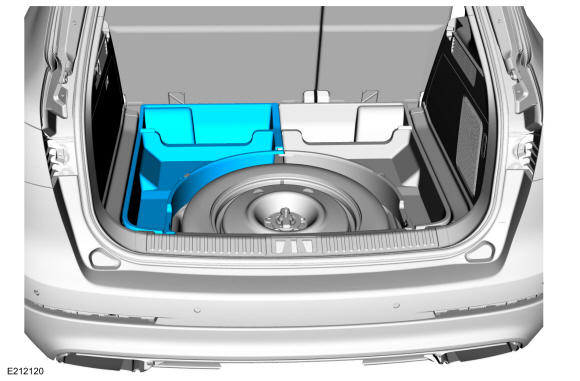

If equipped. Remove the LH side storage bin.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the RH side storage bin retainers.
1. NOTE: The retainer covers have tethers on them and do not fully come off.

  Position aside the retainer covers.
2. Remove the retainers.
Courtesy of FORD MOTOR COMPANY

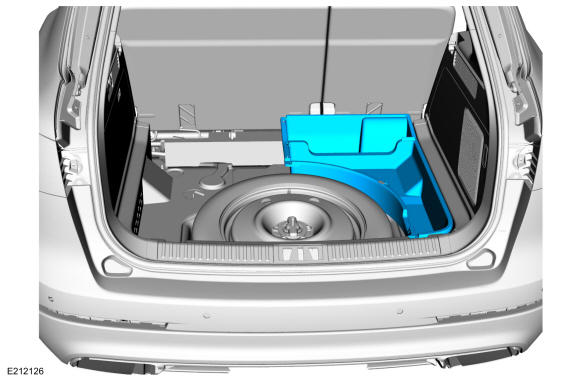

If equipped. Remove the RH side storage bin.

Courtesy of FORD MOTOR COMPANY

RH seat backrest

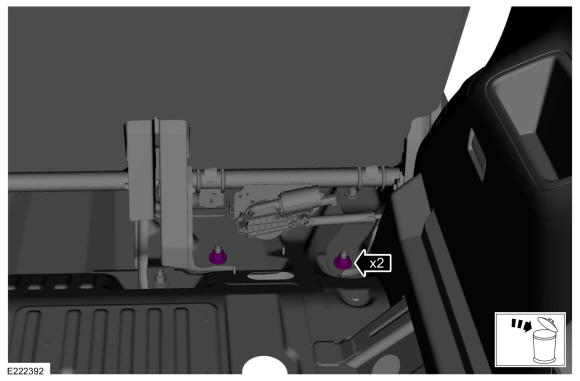

Remove the RH rear seat backrest rear nuts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

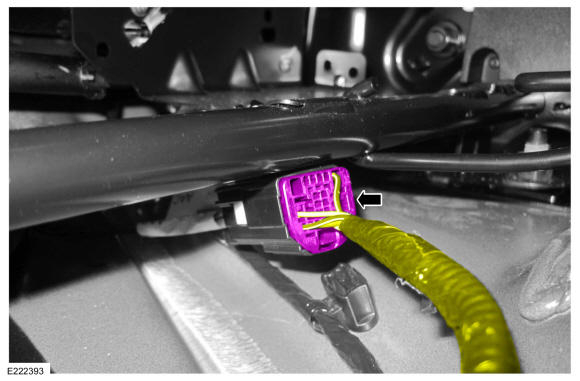

Disconnect the RH body harness-to-rear seat backrest electrical connector.

Courtesy of FORD MOTOR COMPANY

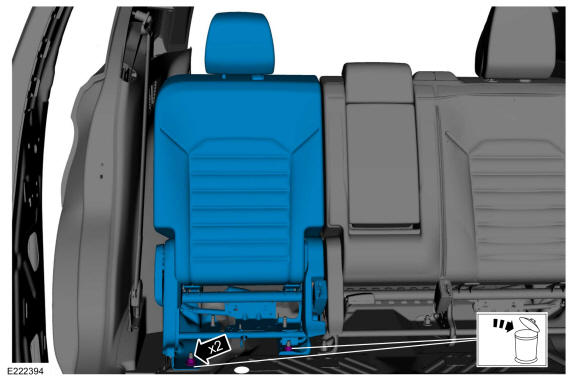

Remove the nuts and the RH rear seat backrest.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

LH seat backrest

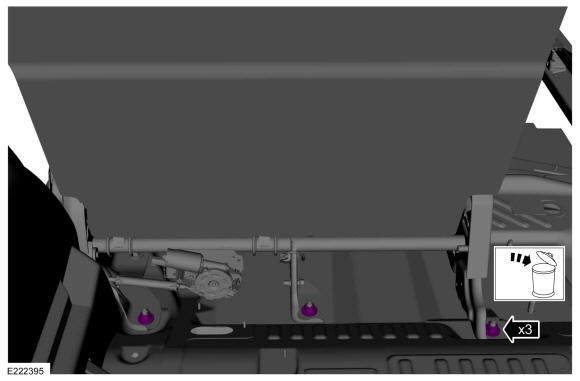

Remove the LH rear seat backrest rear nuts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

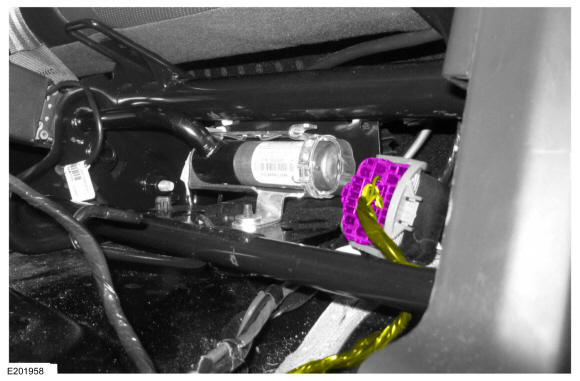

Disconnect the LH body harness-to-rear seat backrest electrical connector.

Courtesy of FORD MOTOR COMPANY

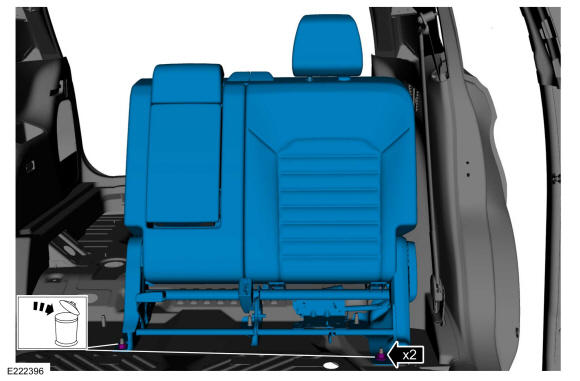

Remove the nuts and the LH rear seat backrest.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

Both seat backrests

NOTE: These steps are only necessary when installing a new component.

NOTE: LH rear seat backrest shown, RH rear seat backrest similar.
If equipped. Remove the rear outer seatbelt inflator. Refer to: Rear Outer Seatbelt Inflator LH - Vehicles With: Inflatable Seatbelts . Refer to: Rear Outer Seatbelt Inflator RH - Vehicles With: Inflatable Seatbelts .
If equipped. Remove the power fold seat motor. Refer to: Power Fold Seat Motor .

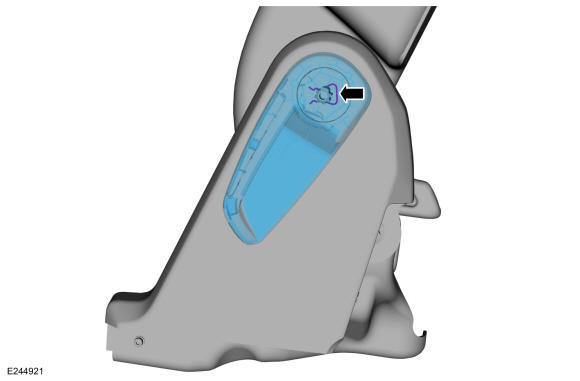

Release the U-clip and remove the backrest recline handle.

Courtesy of FORD MOTOR COMPANY

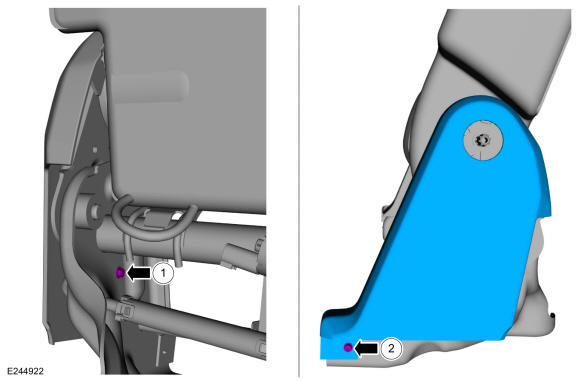

Remove the outboard side shield.
1. Remove the fastener.
2. Remove the fastener.
Courtesy of FORD MOTOR COMPANY

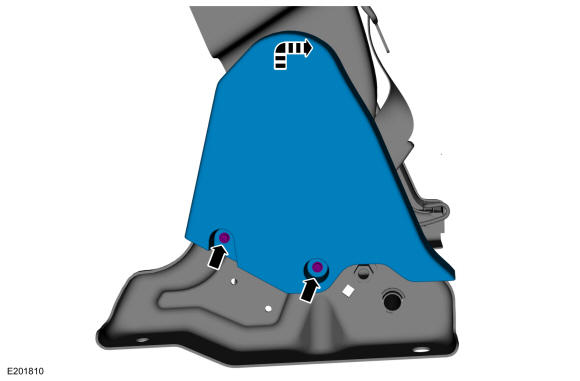

Remove the fasteners and the inboard side shield.

Courtesy of FORD MOTOR COMPANY

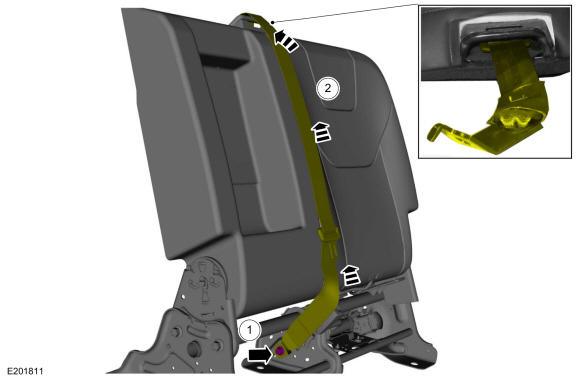

Detach the rear center seatbelt lower anchor.
1. Remove the fastener.
  Torque: 35 lb.ft (47.5 Nm)
2. Route the seatbelt through the upper backrest cover.
Courtesy of FORD MOTOR COMPANY

NOTE: Follow the unique instructions or graphic for this step in the installation.

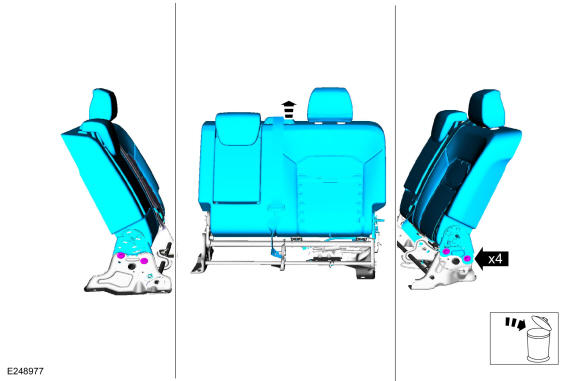

Remove the bolts and separate the rear seat backrest from the rear seat backrest riser.

Courtesy of FORD MOTOR COMPANY
