Rear Seat Backrest: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupant.

NOTE: Transfer components as necessary.

To install, reverse the removal procedure.
Install the rear seat backrest bolts and tighten in the sequence shown.
Torque: 48 lb.ft (65 Nm)

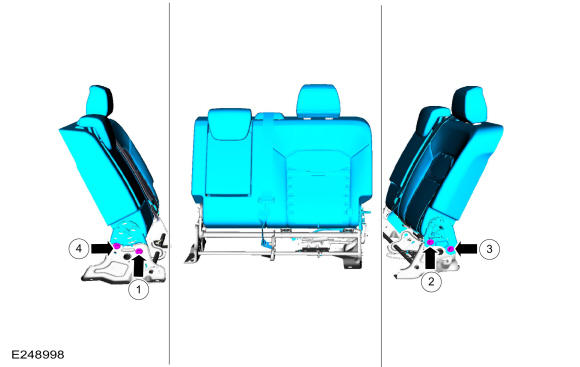

Fig 1: Rear Seat Backrest Tightening Sequence
Courtesy of FORD MOTOR COMPANY
If equipped with inflatable seatbelts, repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
