Rear Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH rear seat shown, RH rear seat similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat backrest. Refer to: Rear Seat Backrest .
Remove the rear head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .

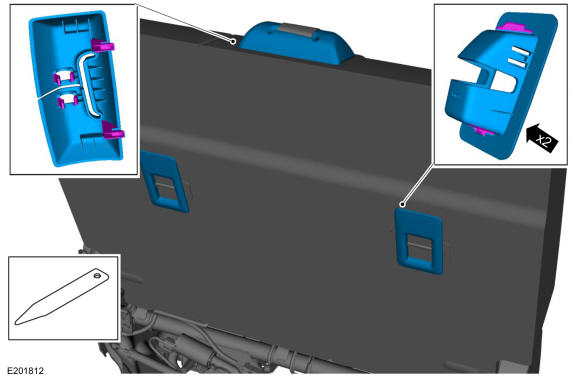

If equipped. Remove the child safety seat tether anchor bezels and the seatbelt guide bezel.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the rear seat armrest. Refer to: Rear Seat Armrest .
Release the U-clip and remove the backrest recline handle.

Courtesy of FORD MOTOR COMPANY
Remove the outboard side shield.
1. Remove the fastener.
2. Remove the fastener.
Courtesy of FORD MOTOR COMPANY
Remove the fasteners and the inboard side shield.

Courtesy of FORD MOTOR COMPANY
Detach the rear center seatbelt lower anchor.
1. Remove the fastener.
  Torque: 35 lb.ft (47.5 Nm)
2. Route the seatbelt through the upper backrest cover.
Courtesy of FORD MOTOR COMPANY

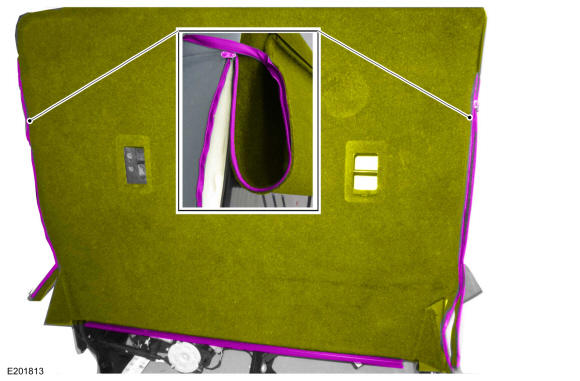

Release the lower J-clip and unzip the backrest cover.

Courtesy of FORD MOTOR COMPANY

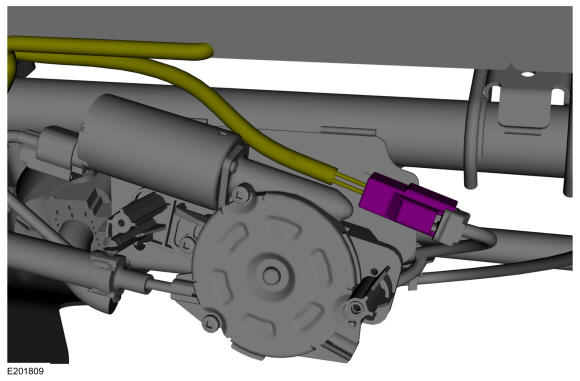

If equipped. Disconnect the heated seat electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest cover from the hook-and-loop strip or the hook-and-loop can be torn from the foam pad.

NOTE: Use care when separating the backrest cover from the hook-and-arrow strip or the hook-and-arrow can be torn from the foam pad.

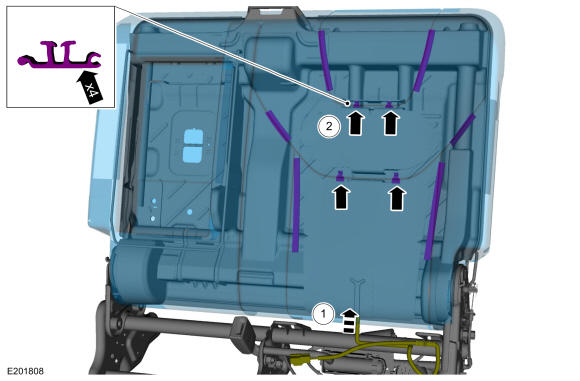

Remove the rear seat backrest cover.
1. If equipped. Route the heated seat wire harness through the rear seat backrest cover.
2. Disengage the backrest cover hook-and-loop and hook-and-arrow strips from the backrest foam.
Courtesy of FORD MOTOR COMPANY

NOTE: This step is only necessary when installing a new component.

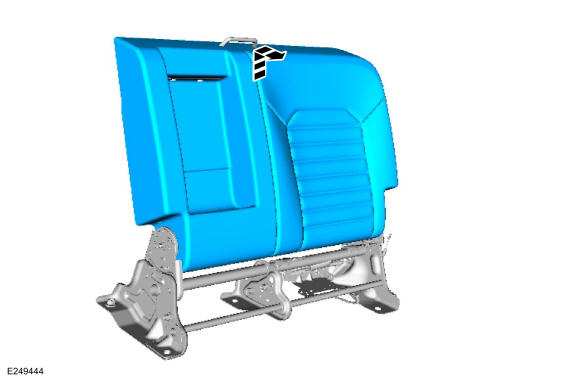

Remove the backrest foam.

Courtesy of FORD MOTOR COMPANY

NOTE: This step is only necessary when installing a new component.

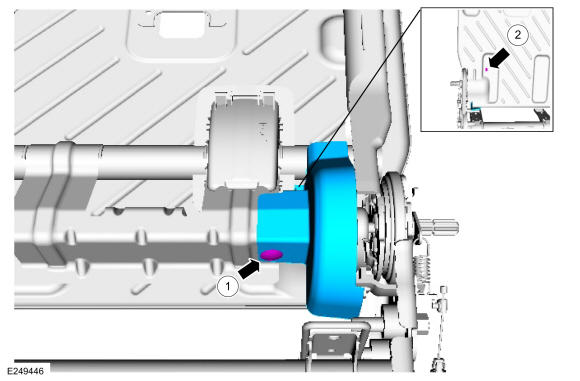

Remove the RH rear seat backrest spring cover.
1. Remove the pin-type retainer.
2. Remove the screw.
Courtesy of FORD MOTOR COMPANY

NOTE: This step is only necessary when installing a new component.

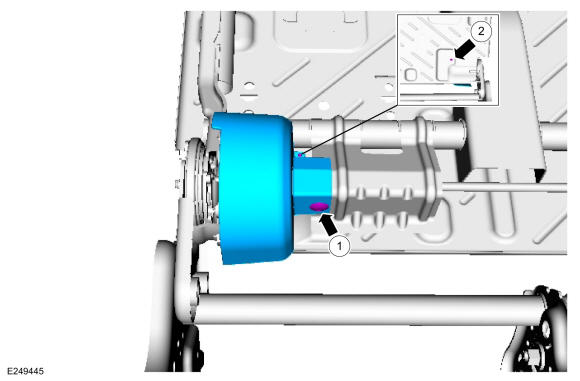

Remove the LH rear seat backrest spring cover.
1. Remove the pin-type retainer.
2. Remove the screw.

Courtesy of FORD MOTOR COMPANY
