Rear Seat Armrest: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

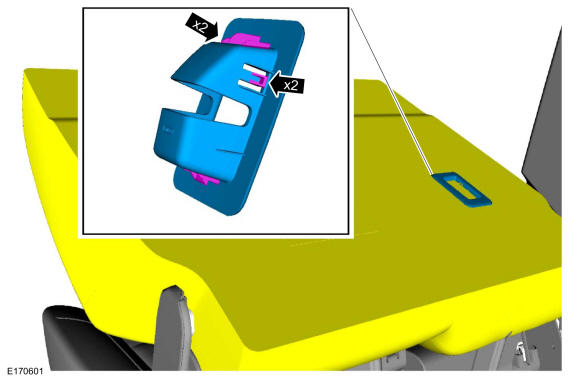

- Remove the inboard child safety seat tether anchor bezel.

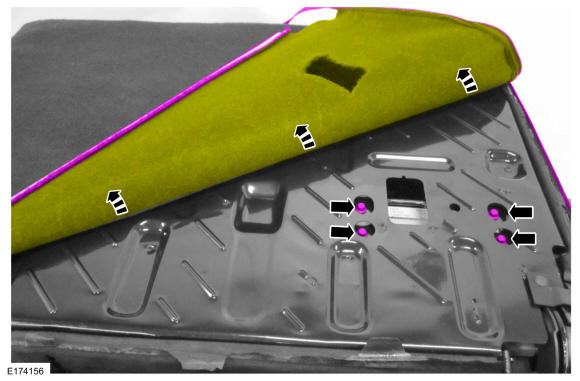

- Release the backrest lower J-clip. Unzip the inboard backrest cover and remove the armrest fasteners.
Torque: 80 lb.in (9.0 Nm)

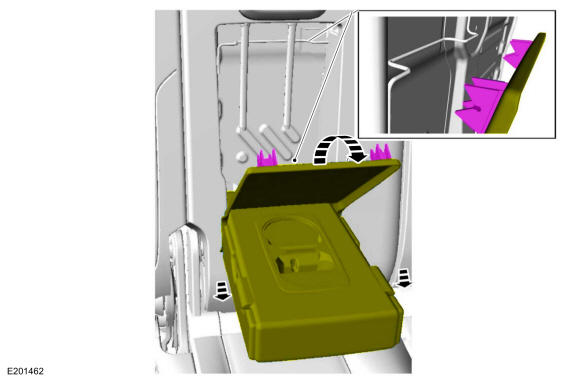

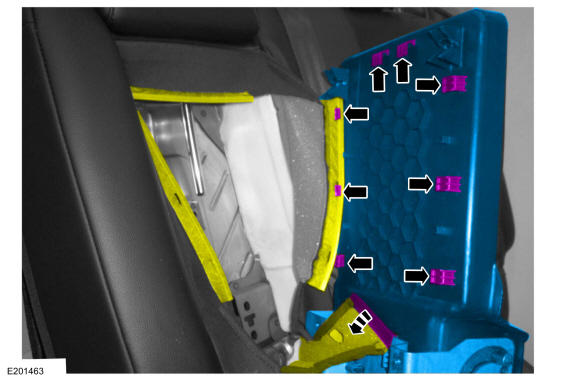

- Lower the armrest and release the armrest back panel upper locking clips from the backrest frame.
- Detach the backrest cover from the armrest hooks. Detach the J-clip and remove the armrest.
