Rear Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH rear seat shown, RH rear similar.

NOTE: Typical head restraint guide sleeve shown, others similar.

NOTE: Follow the unique instructions or graphics for this step in installation.

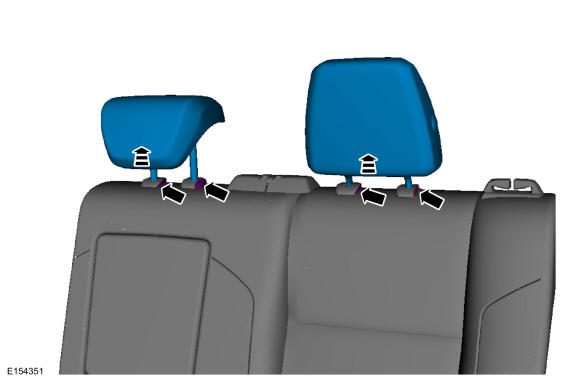

While pressing the primary and secondary head restraint release buttons, lift and remove head restraint(s).

Courtesy of FORD MOTOR COMPANY

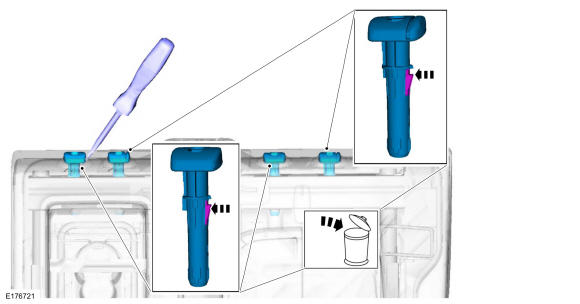

Using a flat head screwdriver, release the head restraint guide sleeves locking tabs. Remove the head restraint guide sleeves and discard. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
