Power Fold Seat Motor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH rear seat shown, RH rear seat similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear seat backrest. Refer to: Rear Seat Backrest .
Vehicles with inflatable safety belts
- Remove the LH rear outer safety belt inflator Refer to: Rear Outer Seatbelt Inflator LH - Vehicles With: Inflatable Seatbelts
.
All vehicles

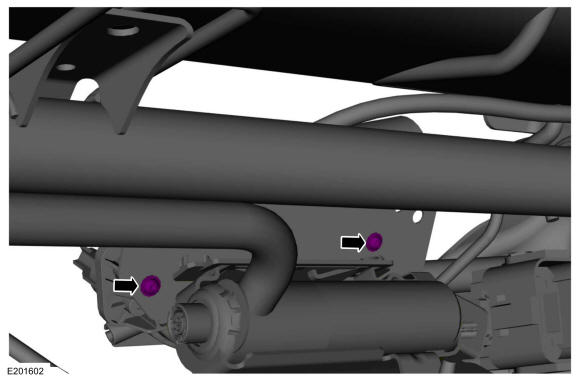

- Remove the power fold seat motor screws.
Torque: 31 lb.in (3.5 Nm)

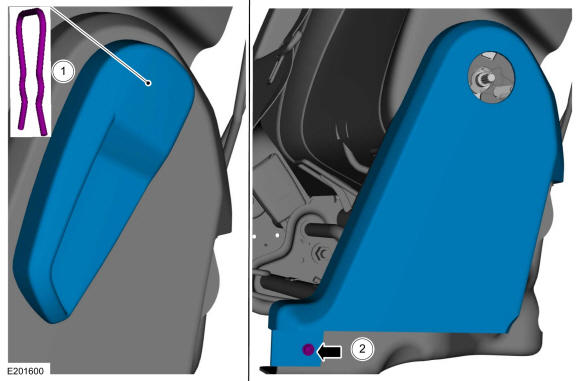

- Remove the rear seat backrest outboard side shield.
- Release the U-clip and remove the backrest recline handle.
- Remove the fastener and side shield.
- Disconnect the electrical connector.

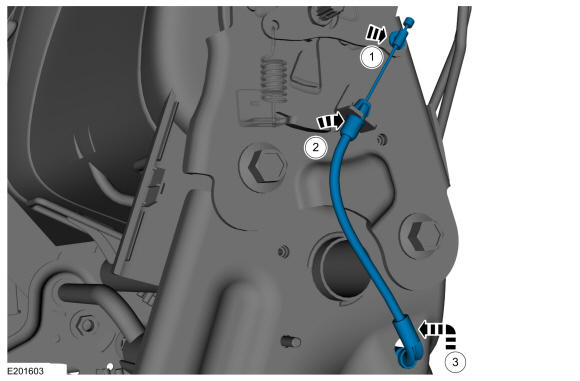

- Release the power fold motor cable.
- Detach the upper cable.
- Detach the center cable.
- Lift and release the lower cable. Route the cable through the seat frame opening.

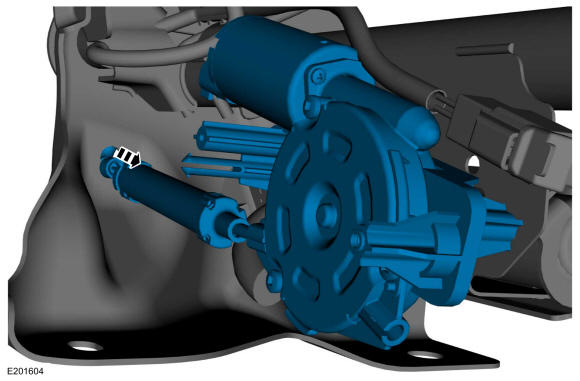

- Remove the power fold seat motor.
