Power Fold Seat Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

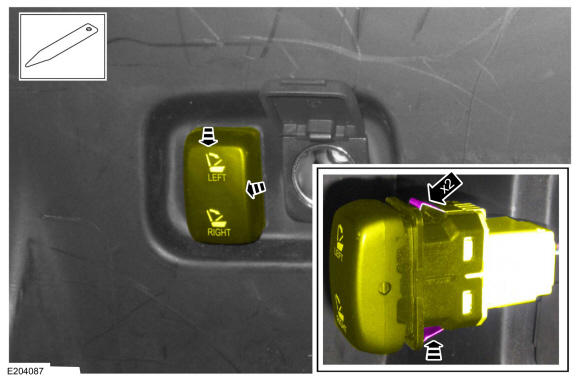

  1. Using an interior trim tool, release the power fold seat control switch locking tabs. Use the General Equipment: Interior Trim Remover
    GFD283336Courtesy of FORD MOTOR COMPANY

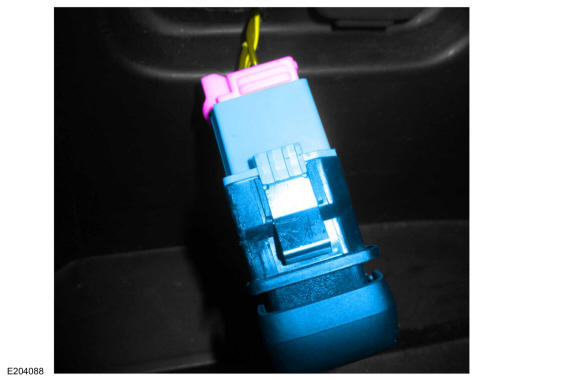

  2. Disconnect the electrical connector and remove the power fold seat control switch.
GFD283337Courtesy of FORD MOTOR COMPANY
