Heated Rear Seat Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

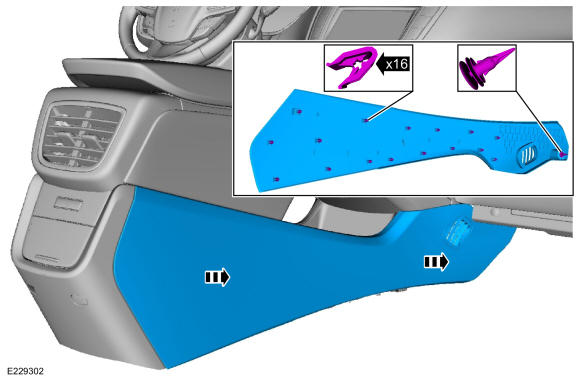

  1. On both sides. Release the clips, the pin-type retainer and remove the floor console lower trim panel.
    GFD283332Courtesy of FORD MOTOR COMPANY

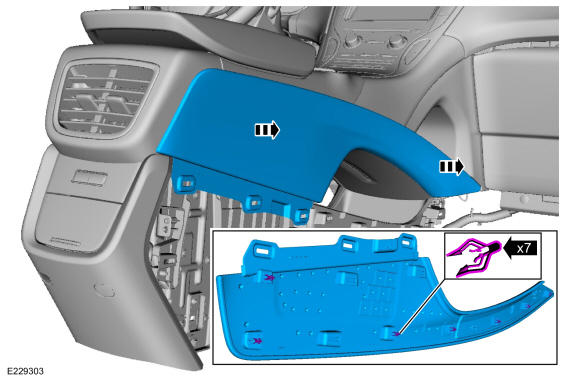

  2. On both sides. Release the clips and remove the floor console middle trim panel.
    GFD283333Courtesy of FORD MOTOR COMPANY

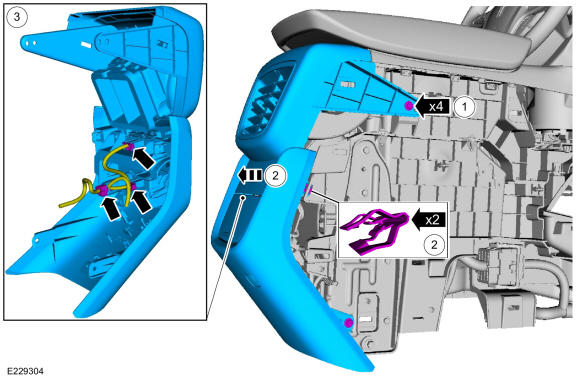

  3. Remove the floor console rear trim panel.

    1. On both sides. Remove the screws.
    2. On both sides. Release the spring retainer.
    3. Disconnect the electrical connector(s).

    GFD283334Courtesy of FORD MOTOR COMPANY
  4. Release the locking tabs and remove the heated rear seat switch.
GFD283335Courtesy of FORD MOTOR COMPANY
