Heated Rear Seat Module: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat cushion. Refer to: Rear Seat Cushion .
- Release the seat cushion cover J-clips.

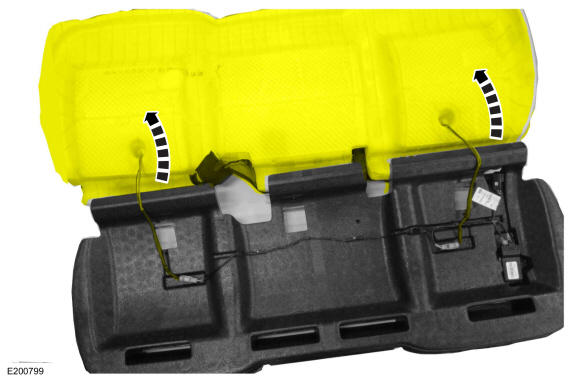

- Raise the rear seat cushion cover and foam.

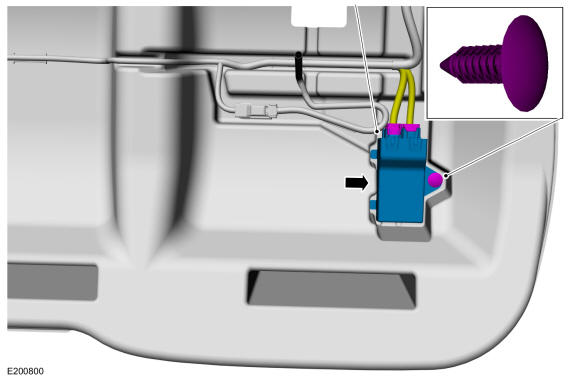

- Disconnect the electrical connectors. Remove the pin-type retainer and the heated rear seat module.
