Front Seat: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

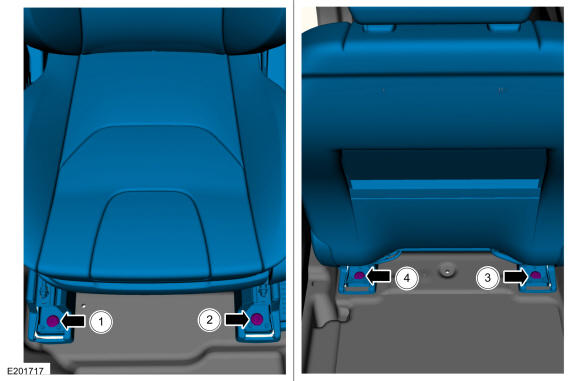

  2. Install the front seat bolts in the following sequence.

    1. Install the front inboard bolt.

      Torque: 35 lb.ft (47 Nm)

    2. Install the front outboard bolt.

      Torque: 35 lb.ft (47 Nm)

    3. Install the rear inboard bolt.

      Torque: 35 lb.ft (47 Nm)

    4. Install the rear outboard bolt.

      Torque: 35 lb.ft (47 Nm)

    GFD283245Courtesy of FORD MOTOR COMPANY
  3. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
