Front Seat Track: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- If equipped. Adjust the manual lumbar to the fully relaxed position.
- Remove the front seat cushion and cover as an assembly. Refer to: Front Seat Cushion Cover .
-
NOTE: This step is only necessary when the passenger seat is equipped with an original equipment (OE) OCS.
Remove the OCS. Refer to: Occupant Classification System (OCS) Sensor .
- If equipped. Position the manual lumbar cable away from the seat track.
- Disconnect the cable from the manual lumbar actuator.
- Detach the cable retainers from the seat track.
- Remove the screws and the recline cover.

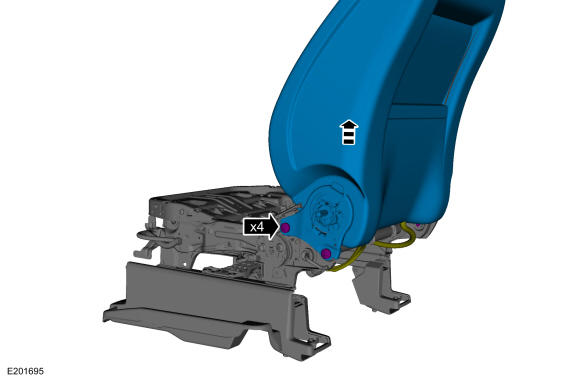

- Remove the bolts and the front seat backrest.
Torque: 33 lb.ft (45 Nm)
