Front Seat Track Motor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
-
NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

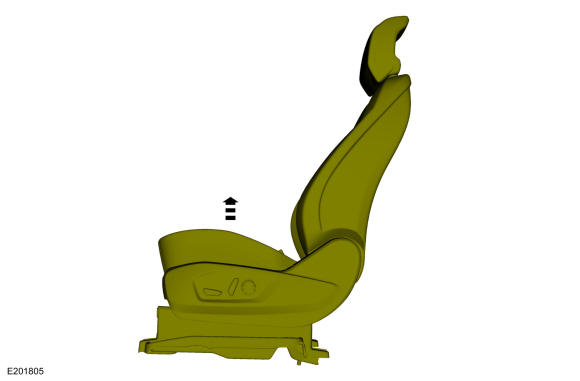

Move the front seat to the full upward position.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Disconnect the seat harness electrical connector(s).
- Detach the wire harness pin-type retainer(s).
- Release the locking tab(s) and rotate the position assurance lever(s).
- Disconnect seat position sensor electrical connector.
- Detach the seat track wire harness connector retainer(s) from the seat track motor.
- If equipped. Disconnect ambient lamp electrical connector.
-
NOTE: Seat components are removed for clarity.
Disconnect the seat track motor electrical connector, detach the wire harness retainers and position the wire harness aside.
-
NOTE: Seat components and wiring harnesses are removed for clarity.

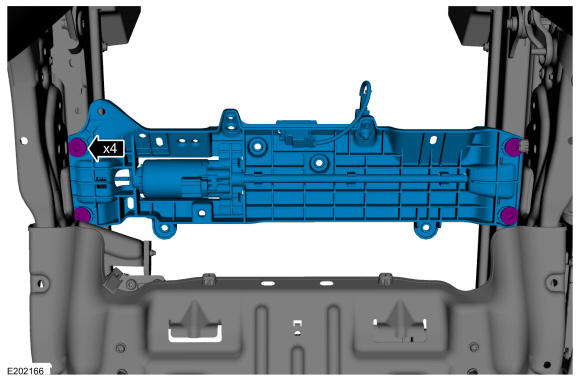

Remove the bolts and the seat track motor.
- If equipped. Detach the pin-type retainer and remove the ambient lamp.
