Front Seat Power Lumbar Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
Climate controlled seat
- Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .
Seat without climate control
- Remove the front seat. Refer to: Front Seat .
- Position the backrest wire harnesses aside.

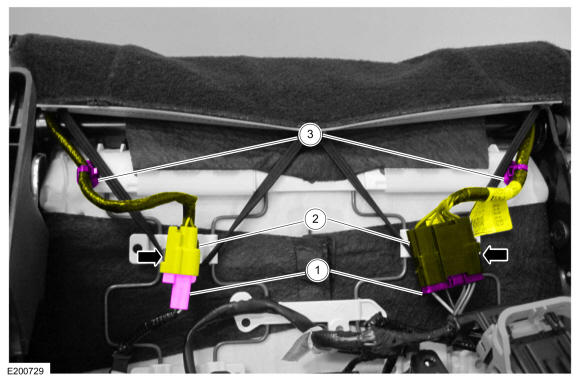

- Release the locking tabs and disconnect the wire harness electrical connectors.
- Detach the wire harness connector retainer(s) from the seat track assembly.
- Detach the wire harness retainer(s) from the seat track assembly.
- Detach the backrest cover straps and position the backrest cover upward.

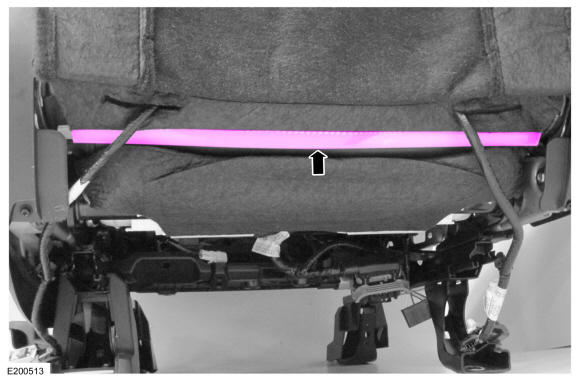

- Release the backrest cover lower J-clip.

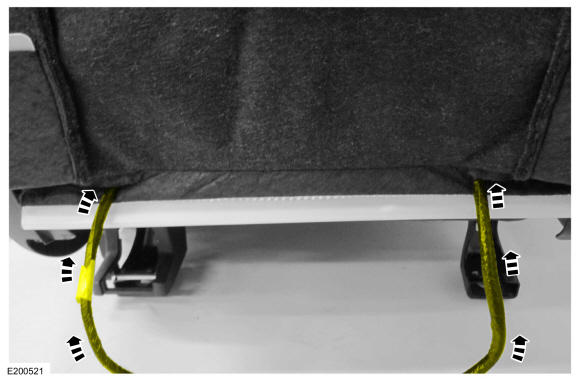

- Route the backrest wire harnesses through the backrest cover openings.

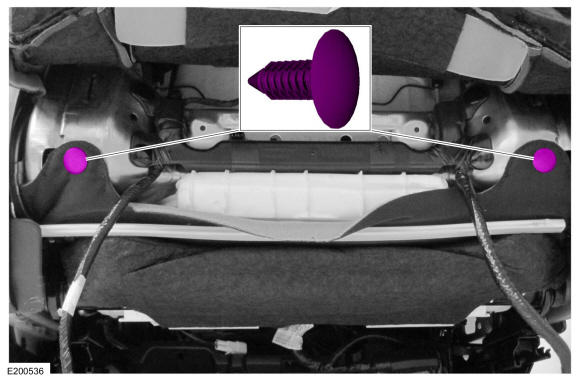

- Remove the backrest cover pin-type retainers.
-
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

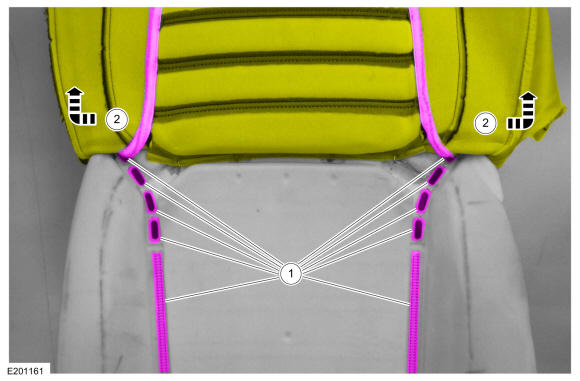

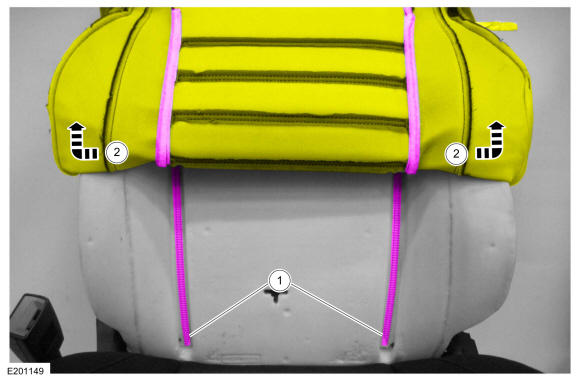

Partially invert the backrest cover enough to access the side airbag deployment chute retainer.

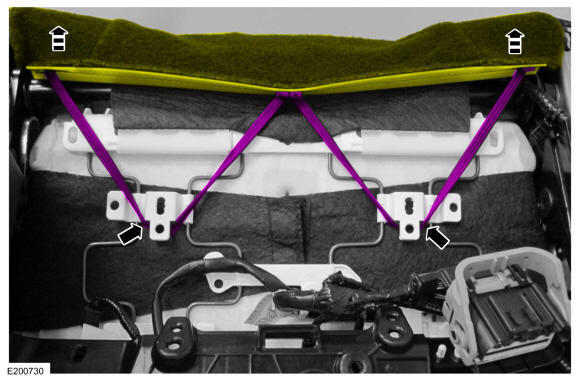

- Release the hook and loop strips.
- Invert the backrest cover.

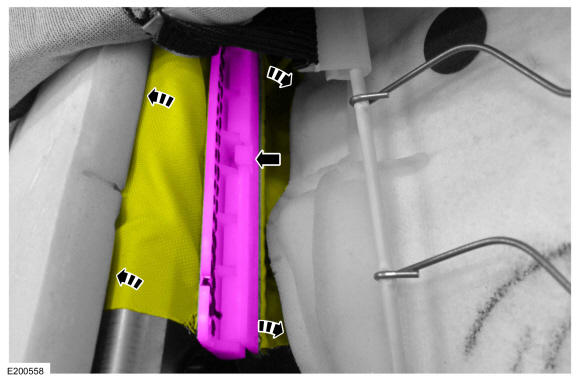

- Release the side airbag deployment chute retainer and position the chute through the backrest foam opening.

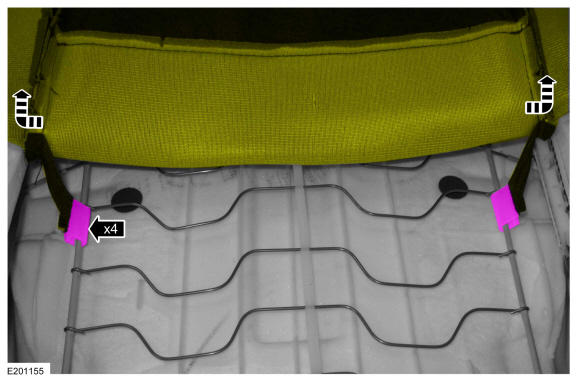

- Partially invert the backrest cover and release the backrest cover J-clips from the lumbar support springs.
-
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.
Partially invert the backrest cover to the hog rings.
- Release the hook and loop strips.
- Invert the backrest cover.
All Seats

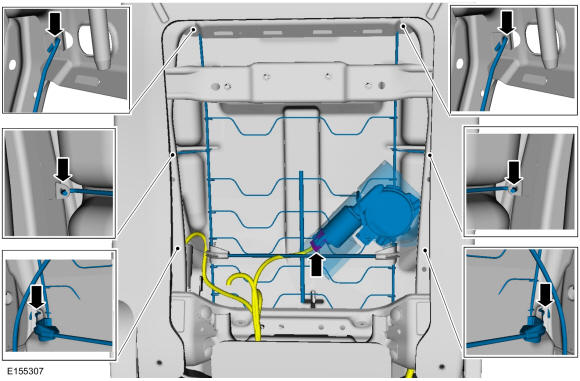

- Disconnect the electrical connector, release the J-hooks and remove the power lumbar assembly.
