Front Seat Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver front seat. Refer to: Front Seat .

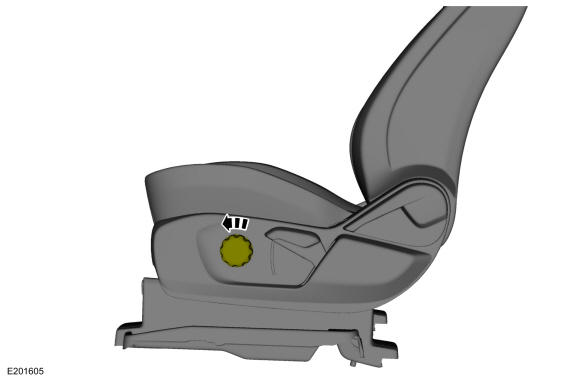

  2. Adjust the manual lumbar to the fully relaxed position.
    GFD283269Courtesy of FORD MOTOR COMPANY

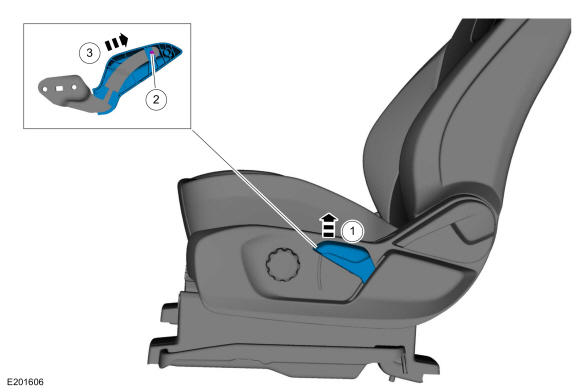

  3. Remove the height adjusting handle.

    1. Raise the height adjusting handle.
    2. Release the locking tab.
    3. Slide the height adjusting handle forward.

    GFD283270Courtesy of FORD MOTOR COMPANY

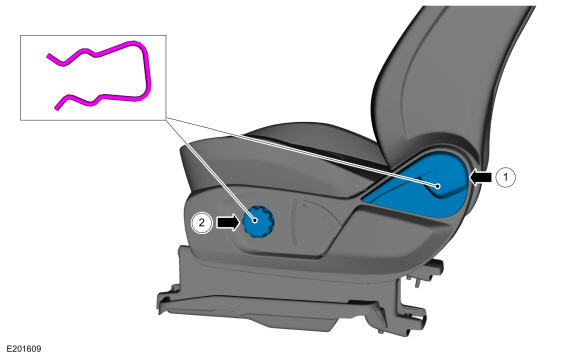

    1. Remove the clip and the recline handle.
    2. Remove the clip and the manual lumbar knob.
    GFD283271Courtesy of FORD MOTOR COMPANY
  5. Remove the side shield screws.
    GFD283272Courtesy of FORD MOTOR COMPANY

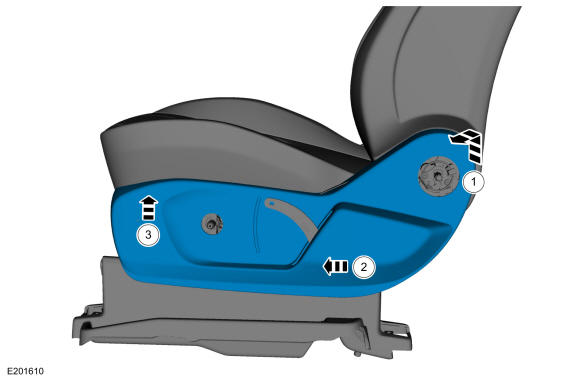

  6. Remove the side shield.

    1. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
    2. Slide the side shield forward.
    3. Lift up on the front of the side shield and slide the side shield from the height adjusting handle lever.

    GFD283273Courtesy of FORD MOTOR COMPANY

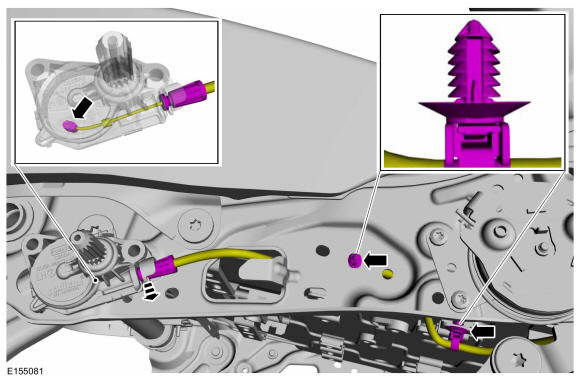

  7. Position the lumbar assembly cable away from the seat track.

    • Disconnect the cable from the lumbar actuator.

    • Detach the cable retainers from the seat track.

    GFD283274Courtesy of FORD MOTOR COMPANY

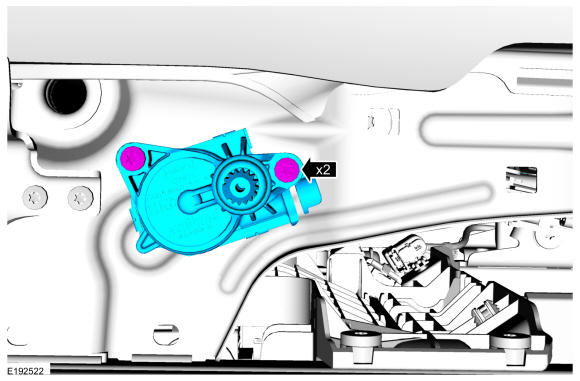

  8. If required. Remove the screws and the manual lumbar actuator.
    GFD283303Courtesy of FORD MOTOR COMPANY

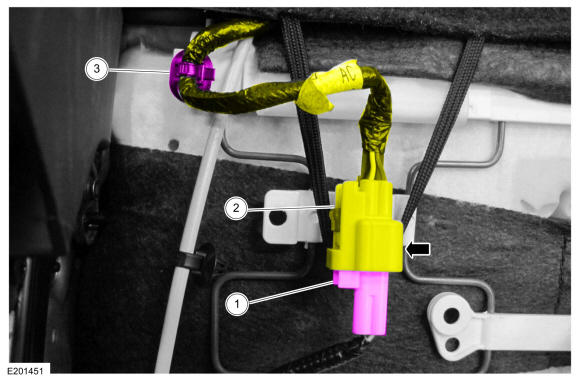

  9. Position the backrest wire harness aside.

    1. Release the locking tab and disconnect the wire harness electrical connector.
    2. Detach the wire harness connector retainer from the seat track.
    3. Detach the wire harness retainer from the seat track.

    GFD283304Courtesy of FORD MOTOR COMPANY
  10. Detach the backrest cover straps and position the backrest cover upward.
    GFD283268Courtesy of FORD MOTOR COMPANY
  11. NOTE: Power driver seat shown, manual driver seat similar.

    Release the backrest cover lower J-clip.

    GFD283249Courtesy of FORD MOTOR COMPANY

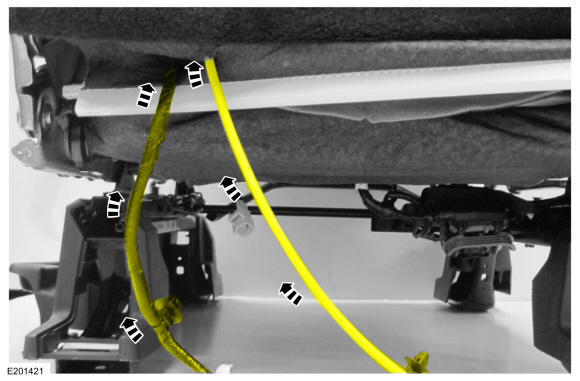

  12. Route the manual lumbar cable and wire harness through the seat backrest cover.
    GFD283305Courtesy of FORD MOTOR COMPANY
  13. NOTE: Power driver seat shown, manual driver seat similar.

    Remove the backrest cover pin-type retainers.

    GFD283251Courtesy of FORD MOTOR COMPANY
  14. NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

    Partially invert the backrest cover enough to access the side airbag deployment chute.

    1. Release the hook and loop strips.
    2. Invert the backrest cover.

    GFD283276Courtesy of FORD MOTOR COMPANY
  15. Release the side airbag deployment chute retainer and position the chute through the backrest foam opening.
    GFD283253Courtesy of FORD MOTOR COMPANY
  16. Partially invert the backrest cover and release the backrest cover J-clips from the lumbar support springs.
    GFD283277Courtesy of FORD MOTOR COMPANY
  17. NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

    Partially invert the backrest cover to the hog rings.

    1. Release the hook and loop strips.
    2. Invert the backrest cover.

    GFD283278Courtesy of FORD MOTOR COMPANY

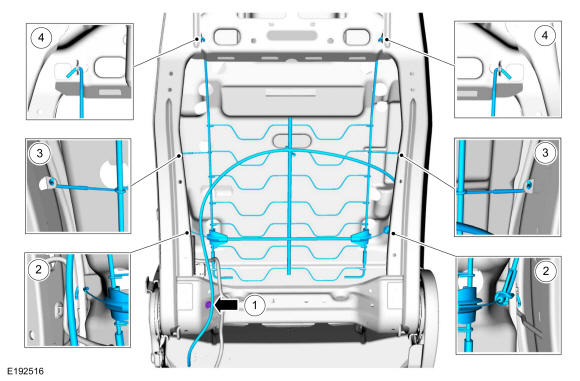

  18. Remove the lumbar assembly.

    1. Release the lumbar assembly cable retainer.
    2. Detach the lumbar assembly cable.
    3. Detach the lumbar assembly J-hooks.
    4. NOTE: Seat backrest foam removed for clarity.

      Detach the lumbar assembly upper J-hooks.

GFD283306Courtesy of FORD MOTOR COMPANY
