Front Seat Cushion Blower Motor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover .

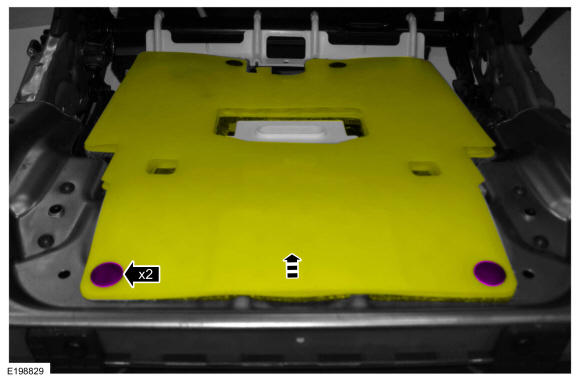

  2. For passenger seat with original equipment OCS. Release the pin-type retainers and position the front of the OCS upward.
    GFD283286Courtesy of FORD MOTOR COMPANY

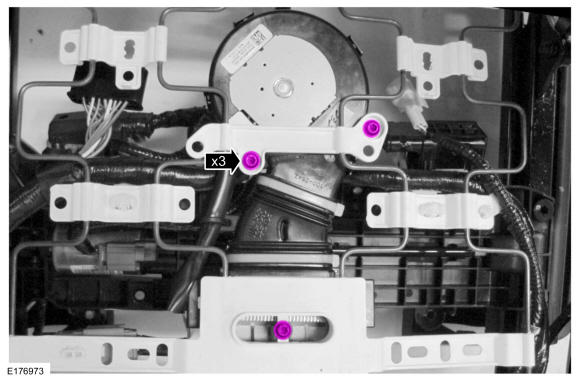

  3. Remove the front seat cushion blower motor screws.
    GFD283287Courtesy of FORD MOTOR COMPANY

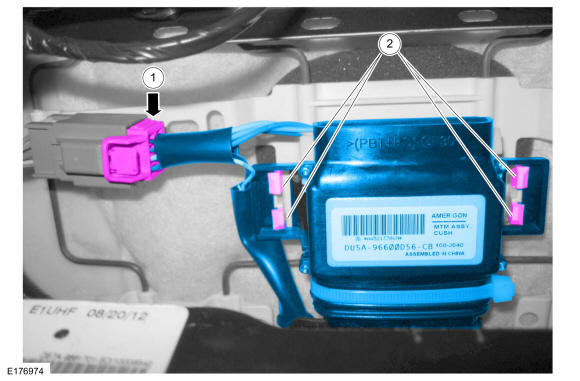

  4. Remove the front seat cushion blower motor.

    1. Disconnect the front seat cushion blower motor electrical connector.
    2. Release the locking tabs.

GFD283288Courtesy of FORD MOTOR COMPANY
