Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat control switch shown, passenger seat control switches similar.

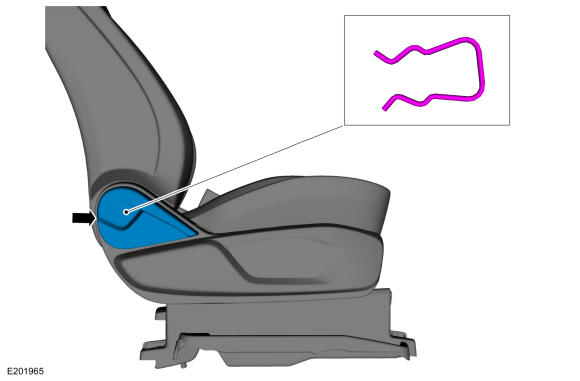

  1. If equipped on passenger seat. Remove the clip and the recline handle.
    GFD283282Courtesy of FORD MOTOR COMPANY

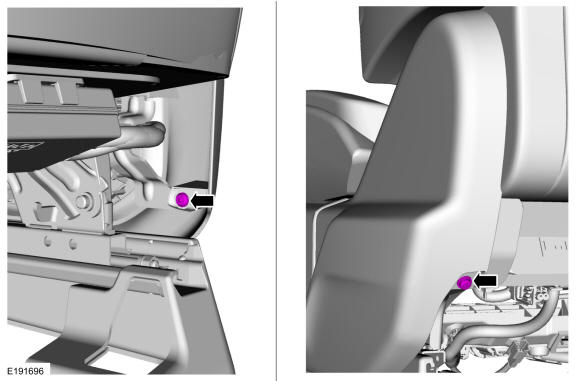

  2. Remove the side shield screws.
    GFD283272Courtesy of FORD MOTOR COMPANY

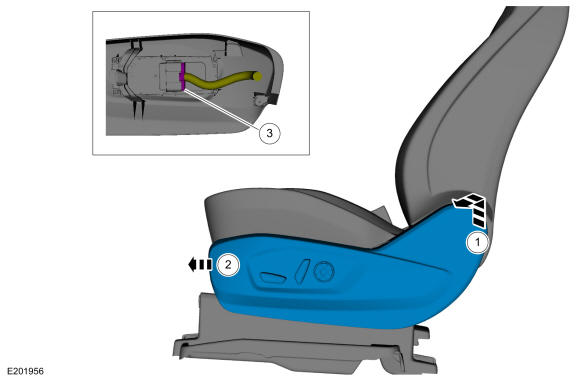

  3. Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD283283Courtesy of FORD MOTOR COMPANY
  4. Remove the seat control switch knob(s).
    GFD283284Courtesy of FORD MOTOR COMPANY

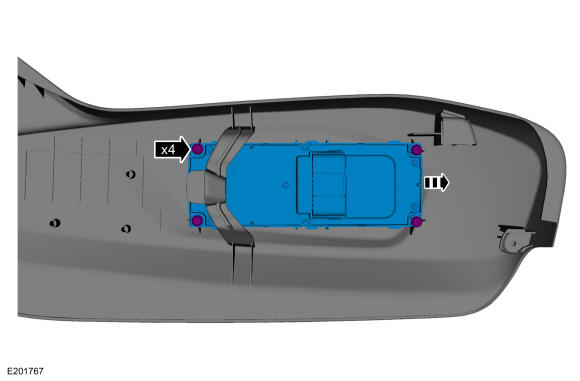

  5. NOTE: 10-way seat control switch shown, 6-way seat control switch similar.

    Remove the screws and the seat control switch.

GFD283285Courtesy of FORD MOTOR COMPANY
