Front Seat Backrest Cover - Vehicles With: Climate Controlled Seats: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat. Refer to: Front Seat .
Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
Position the backrest wire harnesses aside.
1. Detach the electrical connector retainers from the seat track.
2. Release the locking tabs and disconnect the backrest wire harness electrical connectors.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this step in the installation for backrest blower motor snorkel routing.
1. Detach the backrest cover straps.
2. Route the backrest cover straps through the backrest blower motor snorkel.
3. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY
Detach the retainers and position the backrest wire harnesses aside.

Courtesy of FORD MOTOR COMPANY
Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
Route the backrest wire harnesses through the backrest cover openings.

Courtesy of FORD MOTOR COMPANY
Remove the backrest cover pin-type retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

Partially invert the backrest cover enough to access the side airbag deployment chute retainer.
1. Release the hook and loop strips.
2. Invert the backrest cover.
Courtesy of FORD MOTOR COMPANY
Release the side airbag deployment chute retainer and position the chute through the backrest foam opening.

Courtesy of FORD MOTOR COMPANY
Partially invert the backrest cover and release the backrest cover J-clips from the lumbar support springs.

Courtesy of FORD MOTOR COMPANY
Release the backrest cover upper J-clip.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphic for this step in the installation.

Remove the hog rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

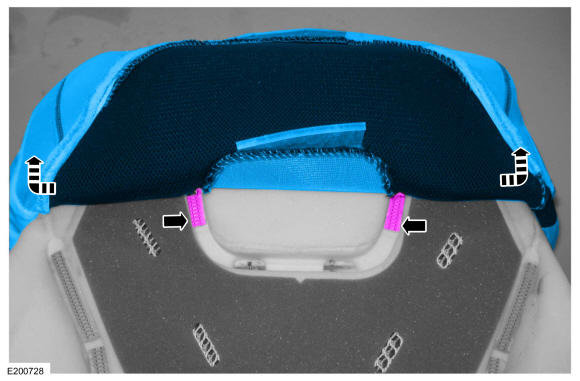

Partially invert the backrest cover enough to access the upper hog rings.
1. Release the hook and loop strips.
2. Invert the backrest cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphic for this step in the installation.

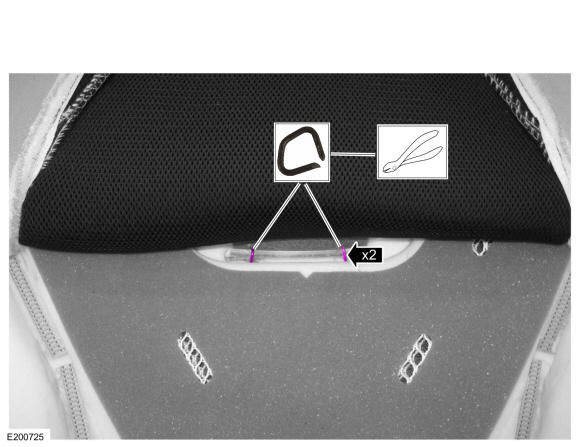

Remove the hog rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

Remove the backrest cover while releasing the hook and loop strips.
