Front Seat Backrest Blower Motor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

NOTE: Seat backrest blower motor without snorkel shown, unless otherwise called out.

NOTE: Methods are common among all options unless otherwise specified.

Remove the front seat. Refer to: Front Seat .
Position the backrest wire harnesses aside.

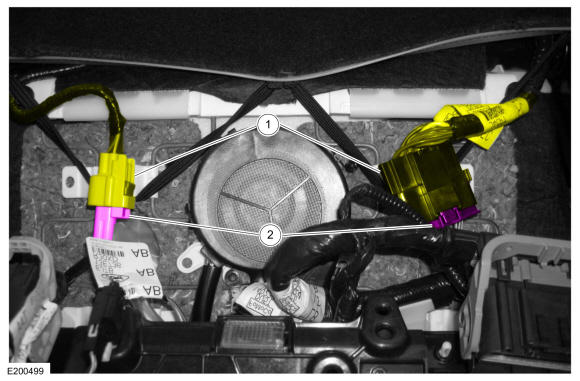

1. Detach the electrical connector retainers from the seat track.
2. Release the locking tabs and disconnect the backrest wire harness electrical connectors.
Courtesy of FORD MOTOR COMPANY
NOTE: Seat cushion blower motor shown.

NOTE: Follow the unique instructions or graphics for this step in the installation for backrest blower motor snorkel routing.

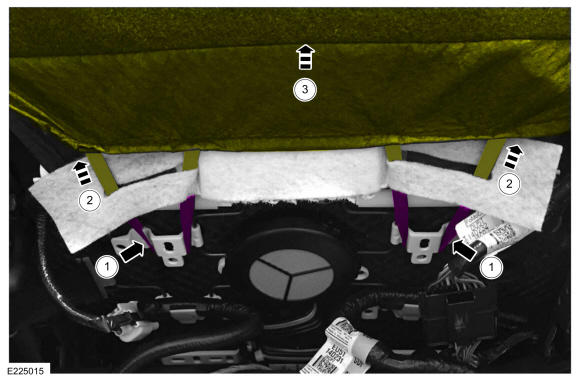

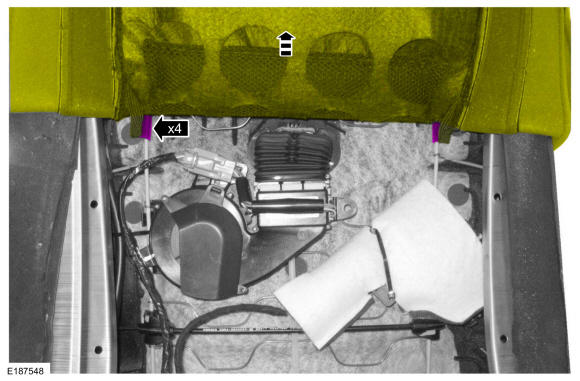

1. Detach the backrest cover straps.
2. Route the backrest cover straps through the backrest blower motor snorkel.
3. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY
Detach the backrest wire harness retainers and position the wire harnesses aside.

Courtesy of FORD MOTOR COMPANY
Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
Route the backrest wire harnesses through the backrest cover openings.

Courtesy of FORD MOTOR COMPANY
Remove the backrest cover pin-type retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

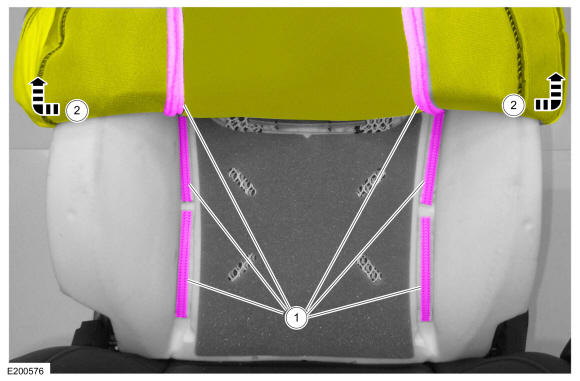

Partially invert the backrest cover enough to access the side airbag deployment chute.
1. Release the hook-and-loop strips.
2. Invert the backrest cover.
Courtesy of FORD MOTOR COMPANY
Release the side airbag deployment chute retainer and position the chute through the backrest foam opening.

Courtesy of FORD MOTOR COMPANY
Release the backrest cover J-clips from the lumbar support spring and partially invert the backrest cover to the access the first row of hog rings.

Courtesy of FORD MOTOR COMPANY

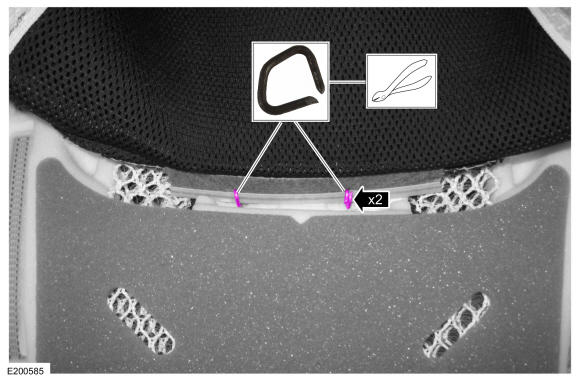

Remove the first row of hog rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

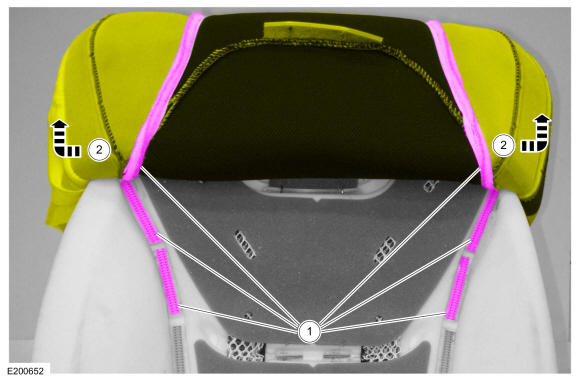

Partially invert the backrest cover to the second row of hog rings.
1. Release the hook and loop strips.
2. Invert the backrest cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Seat backrest blower motor with snorkel shown.

NOTE: New tie strap location should be used during all installations.

NOTE: Follow the unique instructions or graphics for this step in the installation.

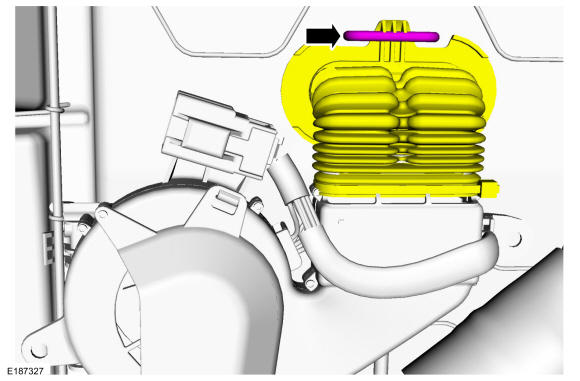

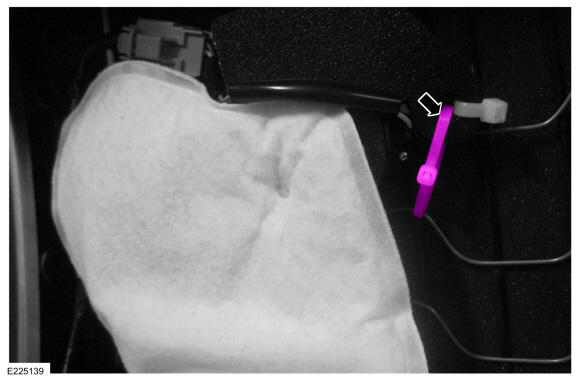

Remove the tie strap.

Courtesy of FORD MOTOR COMPANY

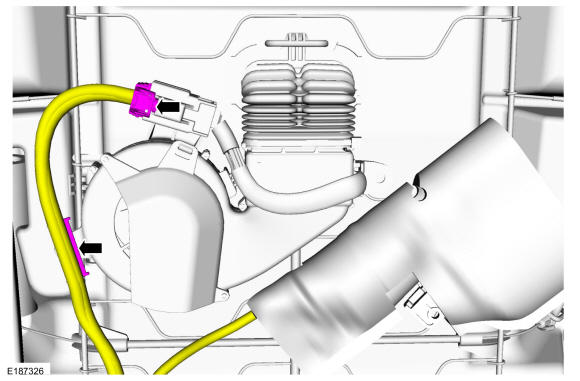

Detach the backrest wire harness retainer and disconnect the blower motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the blower motor manifold from the backrest cushion.

Courtesy of FORD MOTOR COMPANY
NOTE: The backrest cover and foam have been removed for clarity.

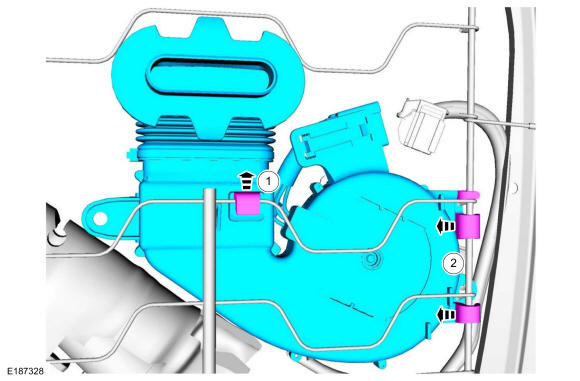

Remove the blower motor.
1. Release the blower motor horizontal retainer.
2. Release the blower motor vertical retainers.

Courtesy of FORD MOTOR COMPANY
