Front Seat Backrest Blower Motor: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: Inspect the seat side air bag, air bag cavity, mounting surface and deployment chute for damage or the presence of foreign material. Remove all foreign material. Install a new side air bag if it is damaged. Install a new seat backrest trim cover and deployment chute if the deployment chute is damaged. Position the deployment chute properly and make sure it is closed. Failure to follow these instructions may result in the seat side air bag deploying incorrectly and increase the risk of serious personal injury or death in a crash.
To install, reverse the removal procedure.
-
NOTE: Seat backrest blower motor with snorkel shown.

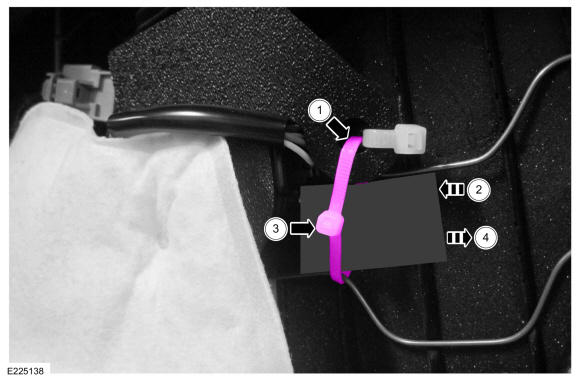

- Install the tie strap.
- Insert a 1 in x 1/8 in section of flat metal stock in the tie strap opening.
- Tighten the tie strap
- Remove the flat stock.
- Use the General Equipment: Hog Ring Plier

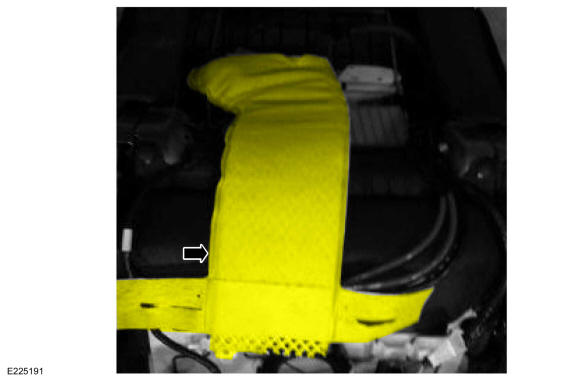

- Position the blower motor snorkel as shown.
