Front Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Typical head restraint guide sleeve shown, others similar.

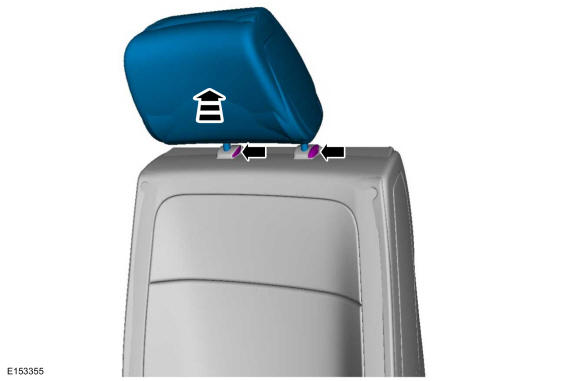

  1. Depress the locking tabs and remove the head restraint.
    GFD283236Courtesy of FORD MOTOR COMPANY

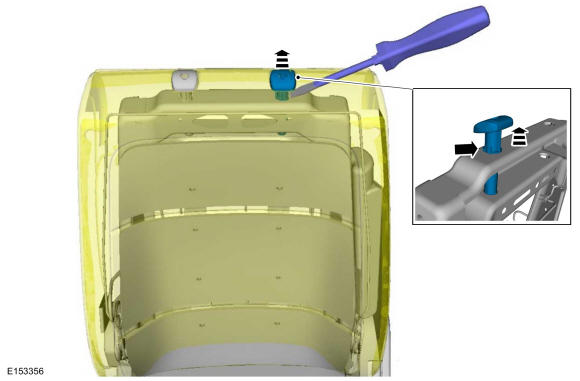

  2. Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
    GFD283237Courtesy of FORD MOTOR COMPANY

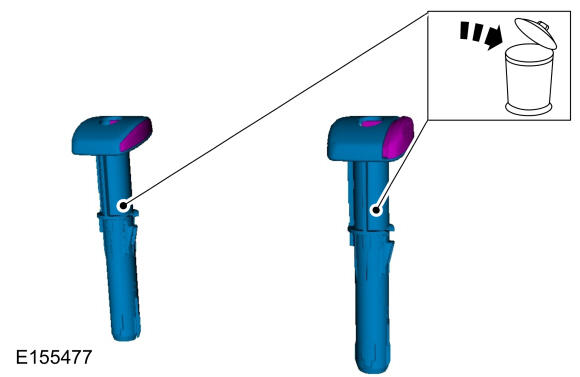

  3. Discard the head restraint guide sleeves.
GFD283238Courtesy of FORD MOTOR COMPANY
