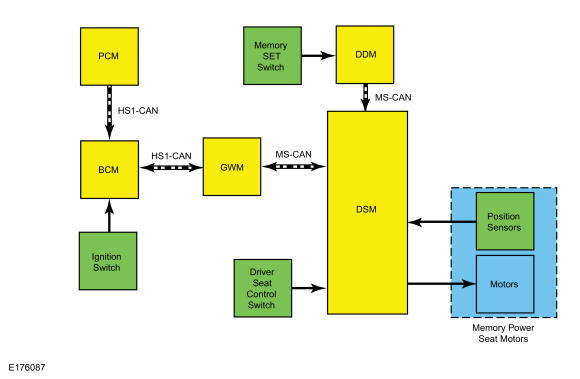

System Diagram - Memory Seat
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

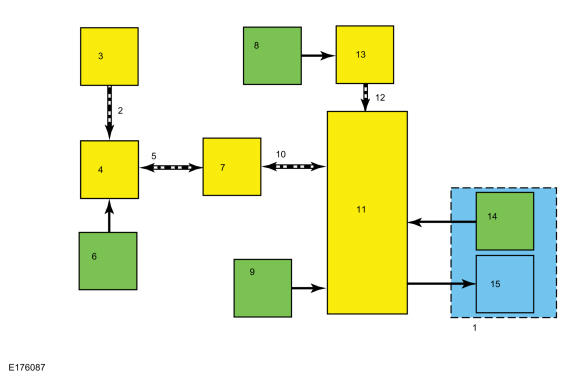

| Item |
Description |
| 1 |
Memory Power Seat Motors |
| 2 |
HS1-CAN |
| 3 |
PCM |
| 4 |
BCM |
| 5 |
HS1-CAN |
| 6 |
Ignition Switch |
| 7 |
GWM |
| 8 |
Memory SET Switch |
| 9 |
Driver Seat Control Switch |
| 10 |
MS-CAN |
| 11 |
DSM |
| 12 |
MS-CAN |
| 13 |
DDM |
| 14 |
Position Sensors |
| 15 |
Motors |
