Steering Column Shrouds: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Fully extend and lower the steering column.

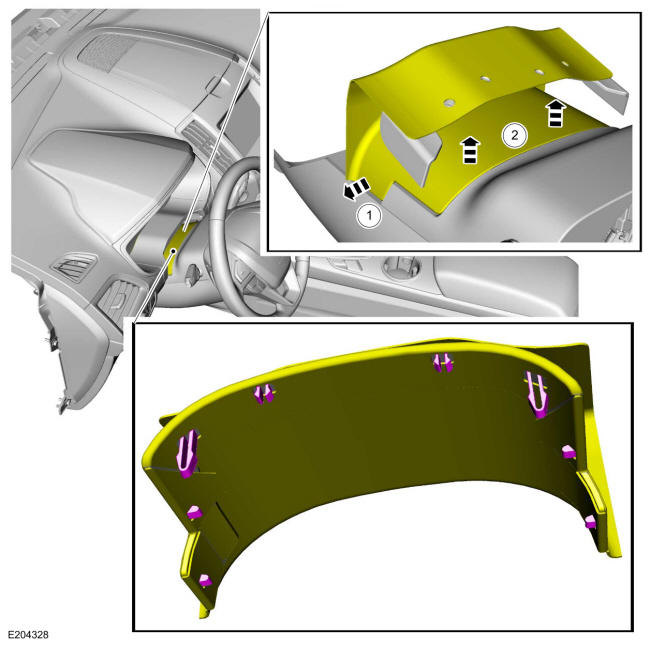

- Disconnect the gap hider from the upper steering column shroud.
- On both sides. Release the gap hider side clips from the upper steering column shroud.
- Release the upper tabs and disconnect the gap hider from the upper steering column shroud.

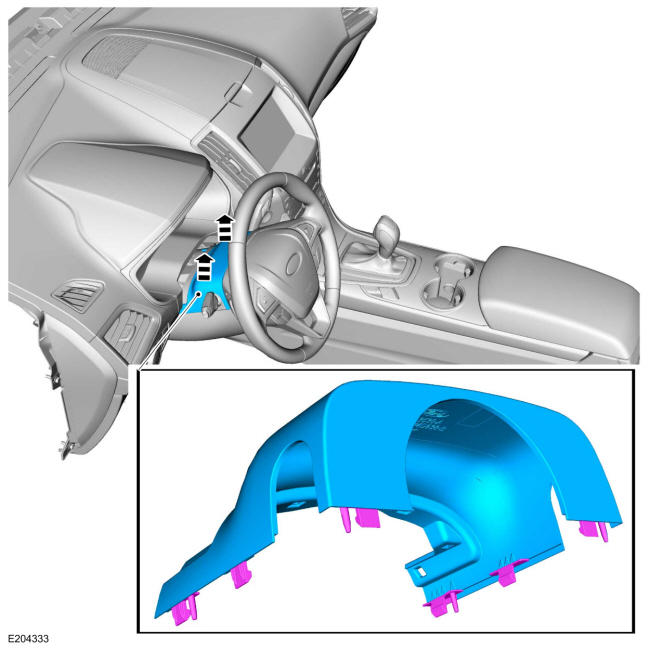

- Release the clips and remove the upper steering column shroud.

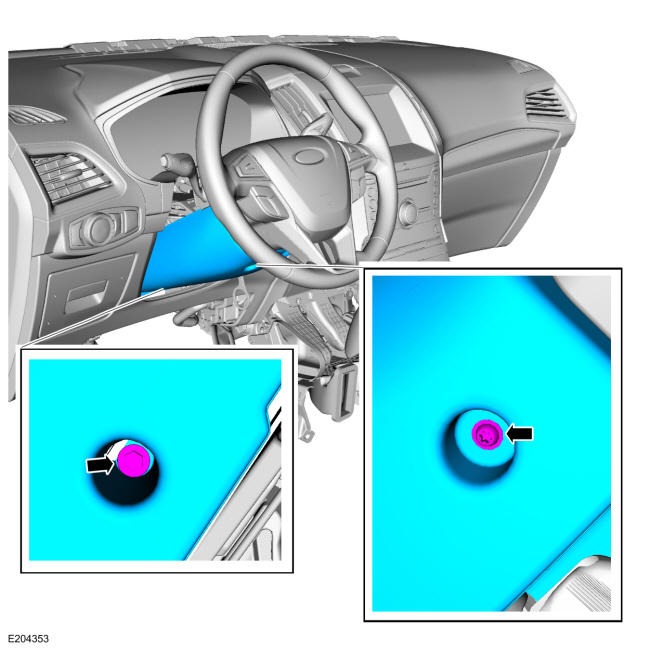

- Remove the retainers and the lower steering column shroud.
